Name: HC550A2M

Type: HC550A2M

Voltage : 220V / 110V

Vacuum pressure:-91Kpa/-98Kpa

Power: ≤350W ;

Noise : ≤60dB(A) ;
Speed: 1440rpm/1700rmp
Design running Temperature : 0℃-155℃ ;

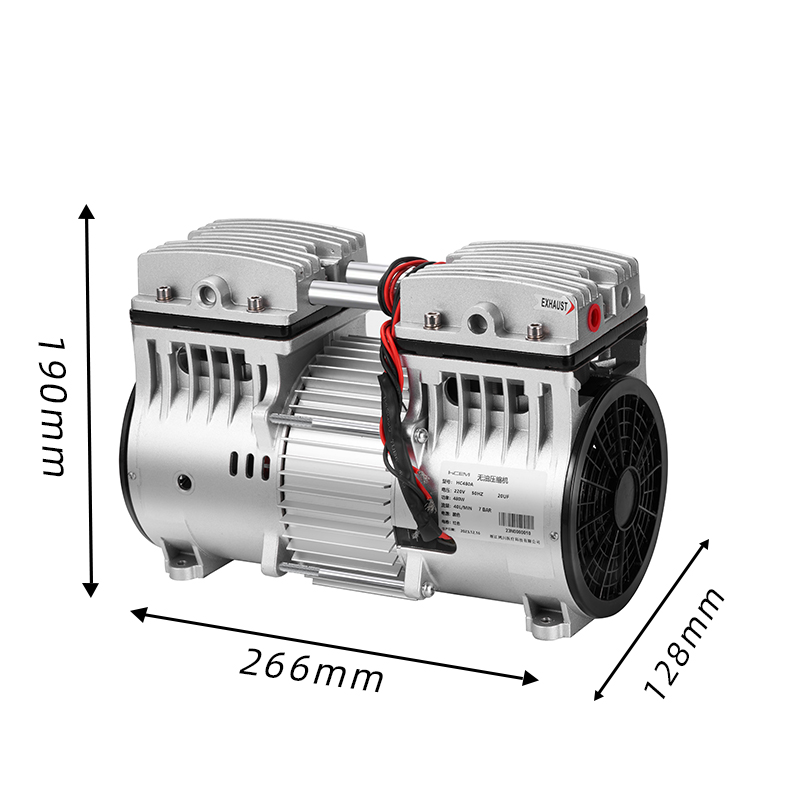

Dimension : 266*128*190mm
Net weight : 9 KG

Product details

More Specification
Voltage	220V 50Hz	220V 50Hz	110V 60Hz	110V 60Hz
Power	≤350W	≤350W	≤350W	≤350W
Vacuum flow rate	103L/min@-91Kpa	51L/min@-98Kpa	110 L/min@-91Kpa	55 L/min@-98Kpa
Speed	1400rpm	1400rpm	1700rpm	1700rpm
Noise	≤60dB(A)
Temperature	-5℃-40℃
Packing	2 pcs / carton case
Dimension	266128190 mm
Installation size	89*223 mm
Net Weight	9 kg
Accessories	1xcapacitor, 1x silencer, 4x rubber feet

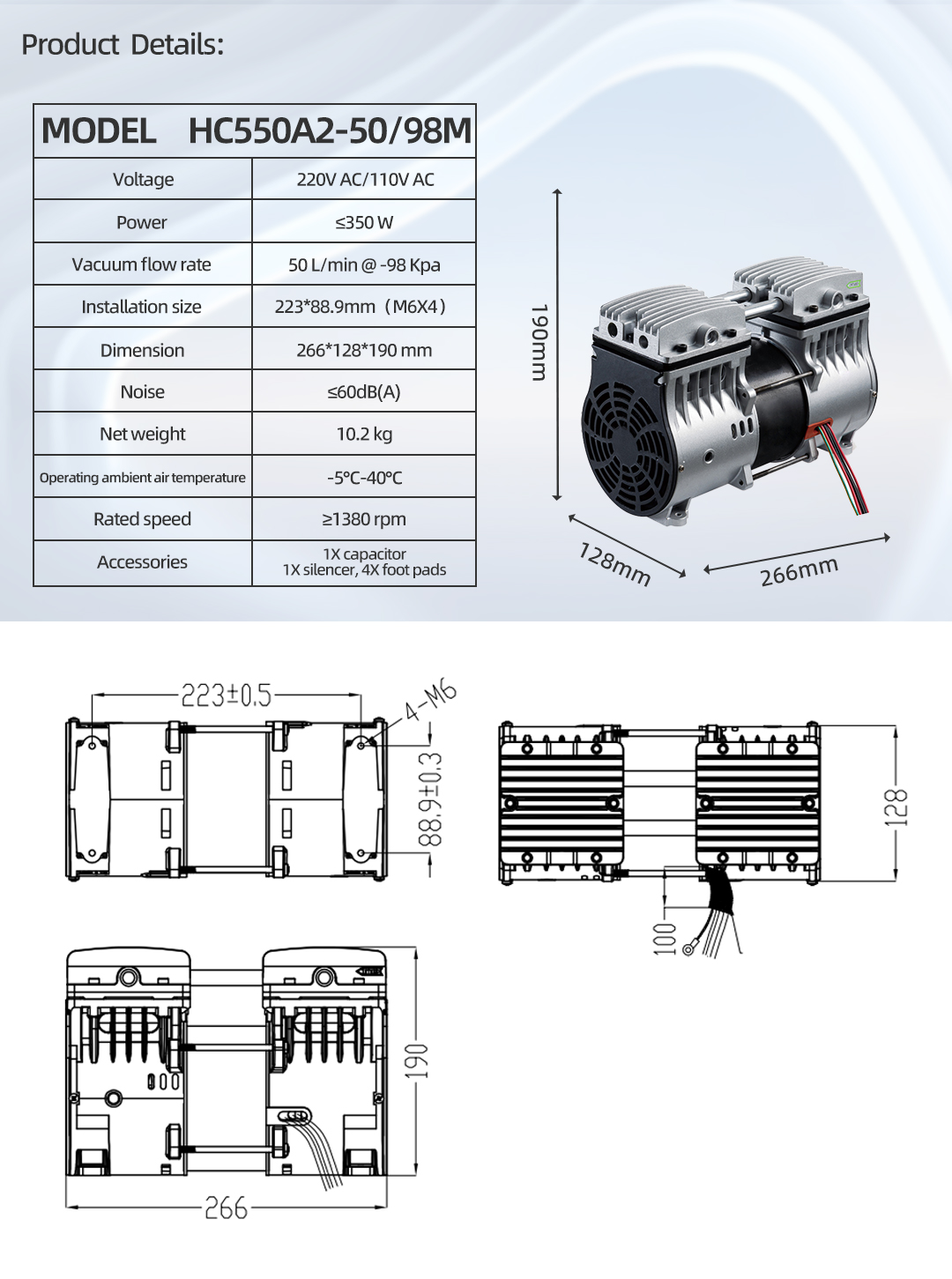

Drawing:
