Name: HC504V-3KW
Type: HC504V-3KW

Voltage : AC380V ;


Air flow rate : 490L/min @ 0 bar ; 300 L/min @ 10 bar ;


Max Pressure : 12 bar ;


Power : 3.0 kw ;


Noise : < 75dB(A) ;


Exhaust temperature : ≦90 ℃ ;


Exhaust port size : G1/2" ;


Working humidity : 80% ;

Product details

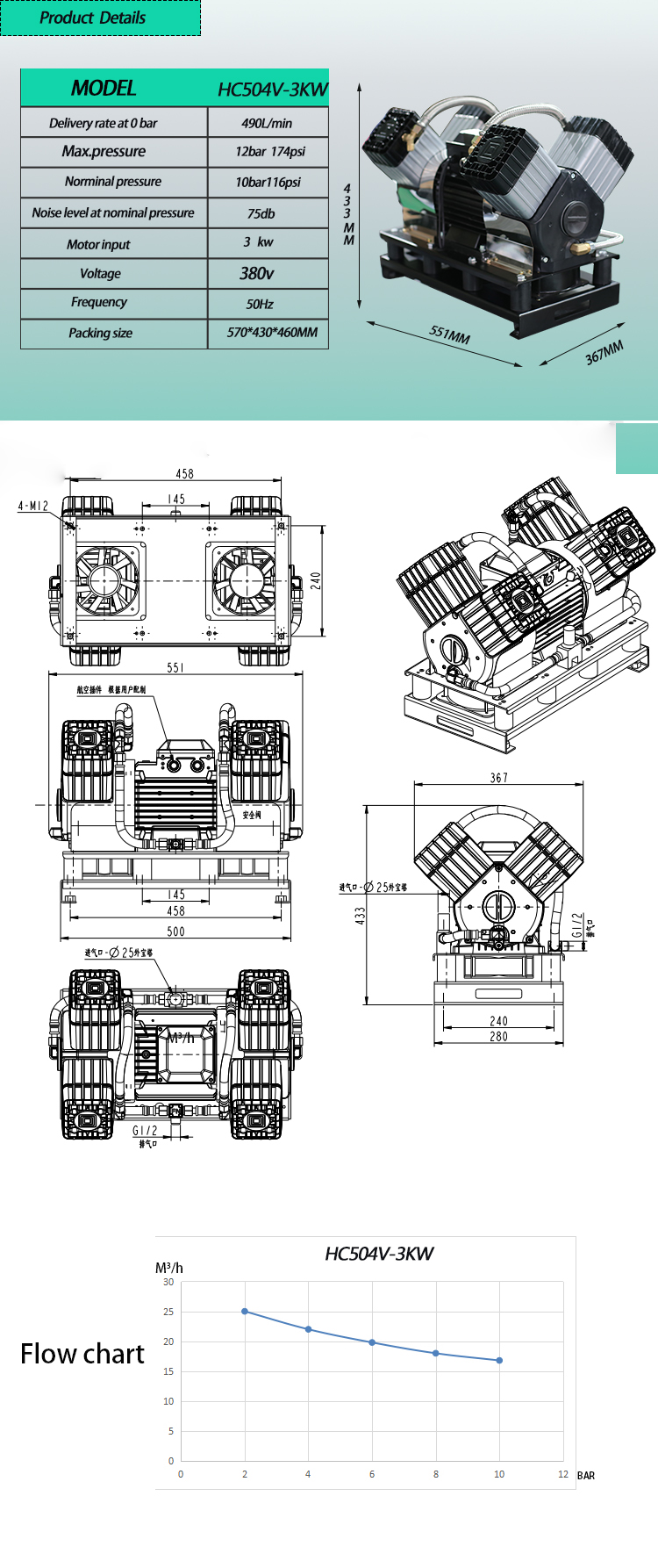

SPECIFICATION SHEET



ITEM NO

HC504V-3KW

Technical Specification

Product Name

Oil free air compressor

Voltage : AC380V ;
Air flow rate : 300 L/min @ 8bar ;
Max Pressure : 12 bar;
Power: 3.0kw;
Noise : < 75dB(A) ;
Exhaust port size : G1/2" ;
Temperature : -5-40

Packing

1 pcs / honeycomb carton

Size

551*367*433 mm

Net weight

48 kg

Gross weight

50 kg
