ITEM NO

HC30C

Air flow rate
(L/min@bar)

Technical Specification

Product Name

DC brushless air compressor

20L/min @ 0 bar
20L/min @-85Kpa(vacuum)

Voltage : DC12V /15V /24V ;
Maxium Pressure : 1.5bar  ;
Power: 22 W ;
Rated Amp : 1.5A ;
Noise : ≤39dB(A) ;
Speed: 2400rpm ;
Environment Temperature : -5℃-+40 ℃

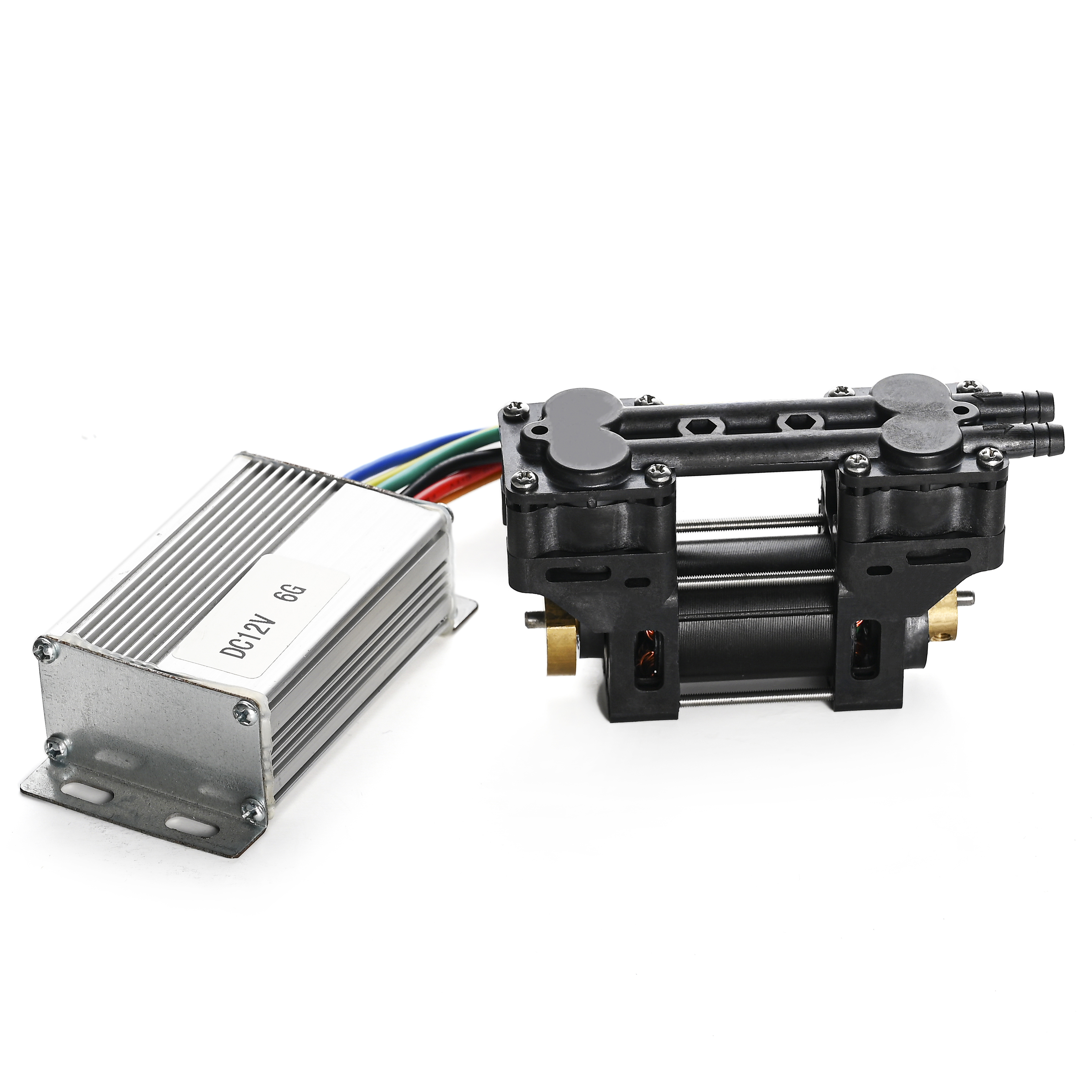

with controller

Packing

300pcs / pallet

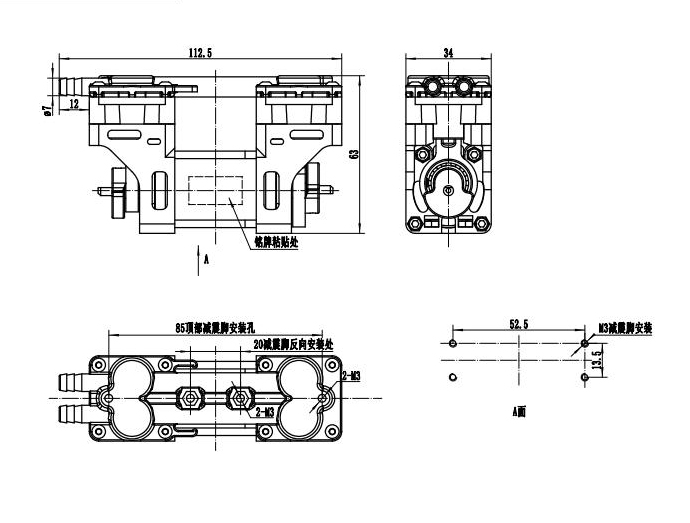

Dimension

112.5×34×63 mm

Weight

0.35 kg
