PRODUCTS SPECIFICATION
|
|
Weight
|
9kg
|
|
Dimension
|
418x192x390mm
|
|
Atomized particle size
|
Average 1-6μm
|
|
*Atomization speed of the sterilizer
|
≥30ml/min
|
|

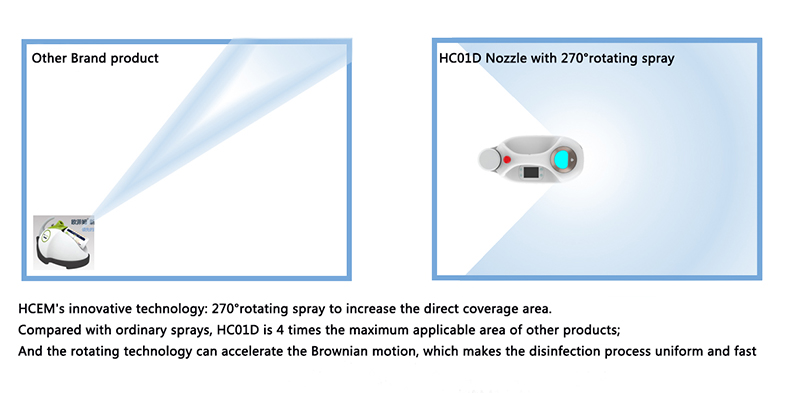

*Atomization outlet rotation
|
The atomization outlet reciprocates in the range of 270°, which promotes the rapid and uniform filling of the dry mist in the disinfection space.
|
|
*Atomized particles directly cover the diameter
|
＞8m
|
|
*Maximum coverage area
|
100㎡
|
|
Working temperature and humidity
|
-10℃~50℃，0~80%RH
|
|
Power supply
|
AC220V，50Hz
|
|
*Dedicated energy station
|
Available for 2 hours of continuous work of the sterilizer
|
|
disinfectant
|
7.5% concentration hydrogen peroxide solution
|
|
Disinfectant installation method
|
The 1 liter disinfectant bottle is carded, and the solution bottle can be directly replaced.
|
|
Material
|
ABS Flame-retardant shell, corrosion-resistant
|
|
*Portable
|
Using ergonomic design, easy to hold and move.
|
|
Control & system SPECIFICATION
|
|
show
|
2.8 inch display
|
|
Control
|
Touch button
|
|
emergency button
|
Red emergency button
|
|
Status light
|
Status light display on the top of the machine
|
|
Anti-dumping
|
When the disinfection machine is tilted more than 30°, it will automatically stop disinfection
|
|
Prevent dry burn
|
Automatically stop disinfection when the disinfectant is consumed
|
|
remote control
|
Can be controlled by wireless remote control
|
|
Phone control
|
Can be controlled through the small program APP
|
|
*Networking
|
Can be connected to the cloud platform via 4G
|
|
operate
|
Visualized and convenient operation, simple and convenient, the system automatically calculates the spray time according to the setting space.
It will stop automatically after disinfection.
|
|
Wait for disinfection
|
After starting the disinfection, there is a waiting time of 30 seconds for the personnel to withdraw from the disinfection site.
|
|
Sterilization capacity and application scenarios
|
|
Sterilization level
|
Up to lg6 kill rate
|
|
Sterilization rate
|
Staphylococcus albicans killing rate ≥99.99%
Air natural bacteria killing rate ≥93.77%
|
|
Scope of application
|
Disinfection of ambulances, buses, nursing homes, pet shops, toilets, high-speed toll booths and small spaces
|
