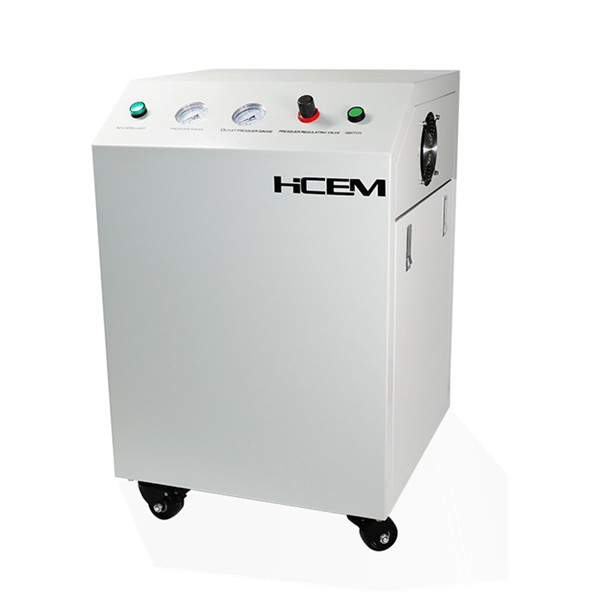

Name: HC1100-50X/HC1500-50X
Type: HC1100-50X/HC1500-50X
Model HC1100-50X/HC1500-50X
Voltage 220V 50Hz  / 110V 60Hz
Air flow rate 100L/min@8 bar,120L/min@8 bar
Speed 1440 rpm /1700 rpm
Noise ≤62dB(A)
Net Dimension 850*970*570 mm
Weight 91 KG
Tank 50 L
Product details



Technical Specification ：

Model

Voltage

Power

Air flow rate

Tank

Net Dimension

Weight

(L*W*H) CM

(KG)

HC1100-50X

220V/50HZ
110V/60HZ

1100W

200 L/min@0 bar
160 L/min@2 bar
137 L/min@4 bar
125 L/min@6 bar
100 L/min@8 bar

50 L

85*57*97

91

1.5 HP

HC1500-50X

1500W

280 L/min@0 bar
219 L/min@2 bar
180 L/min@4 bar
160 L/min@6 bar
120 L/min@8 bar

50 L

85*57*97

95

2.0 HP

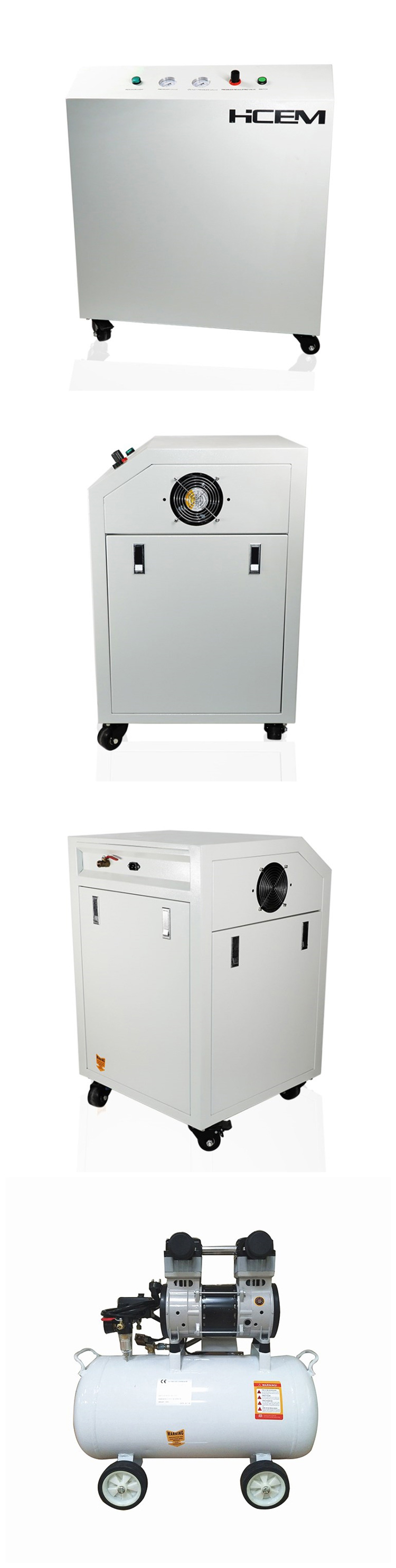

Product show:
