Name: HC100B1-9/7 Oil free air pump
Type: HC100B1-9/7

Voltage: 110V 60Hz


Pressure: 7bar



Noise: ≤52dB(A)


Speed: 1440rpm / 1700rpm


Thermal protector: 135℃



Dimension:176*96*146 mm



Net weight: 3.3kg

Product details

Product parameters:

Model
 HC100B1-9/7
Voltage
 110V/60Hz
Power
 240W
Air fiow rate
 40 L/min@0 bar
28.3 L/min@2 bar
21.7 L/min@4 bar
14.2 L/min@6 bar
9L/min@7 bar
Dimension
 176*96*146mm
Installation size
 114*70mm
Noise
 ≤52dB(A)
Net weight
 3.3kg

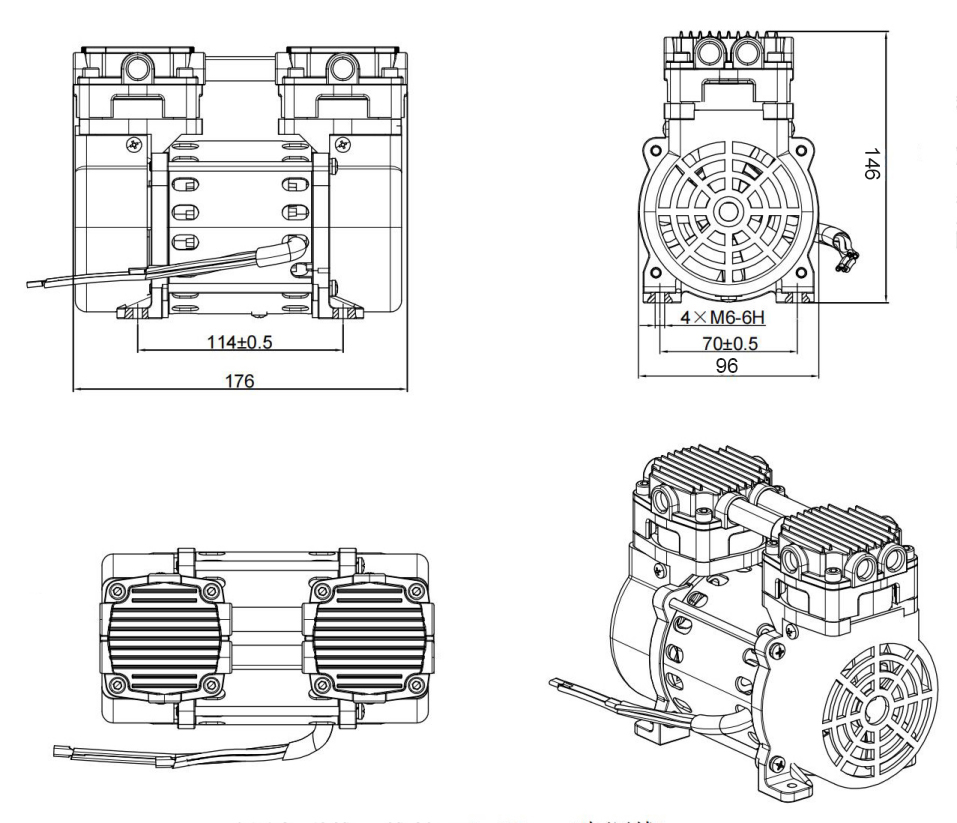

Drawing:

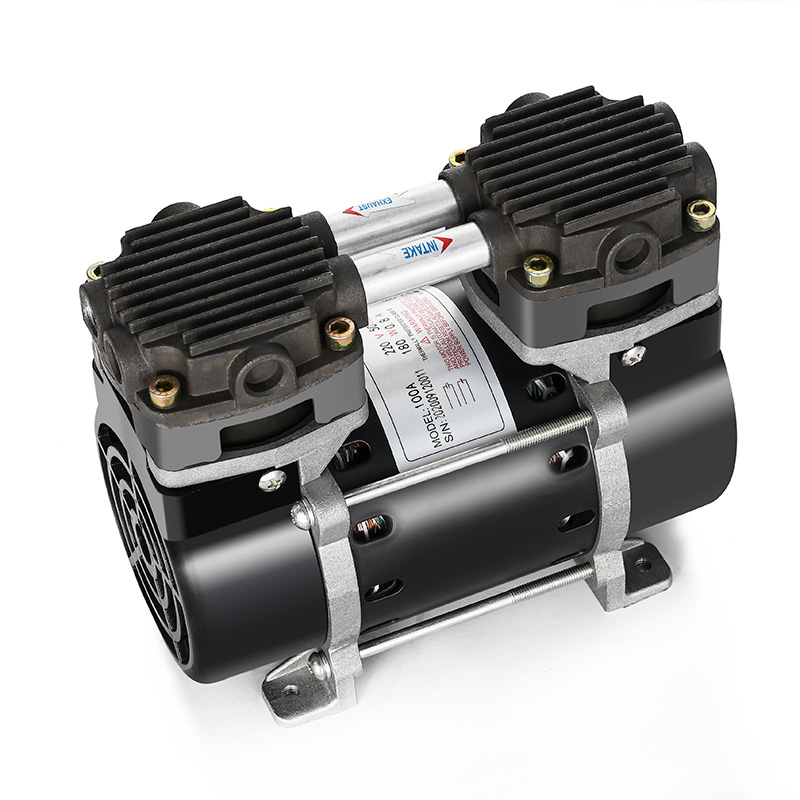

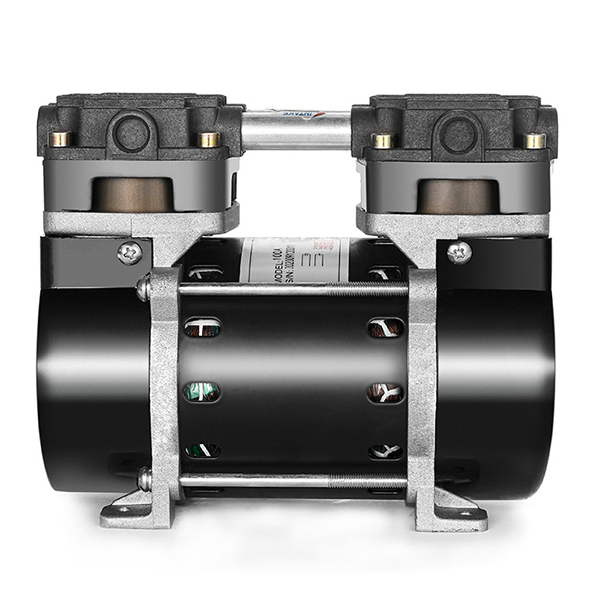

Product show:
