Products

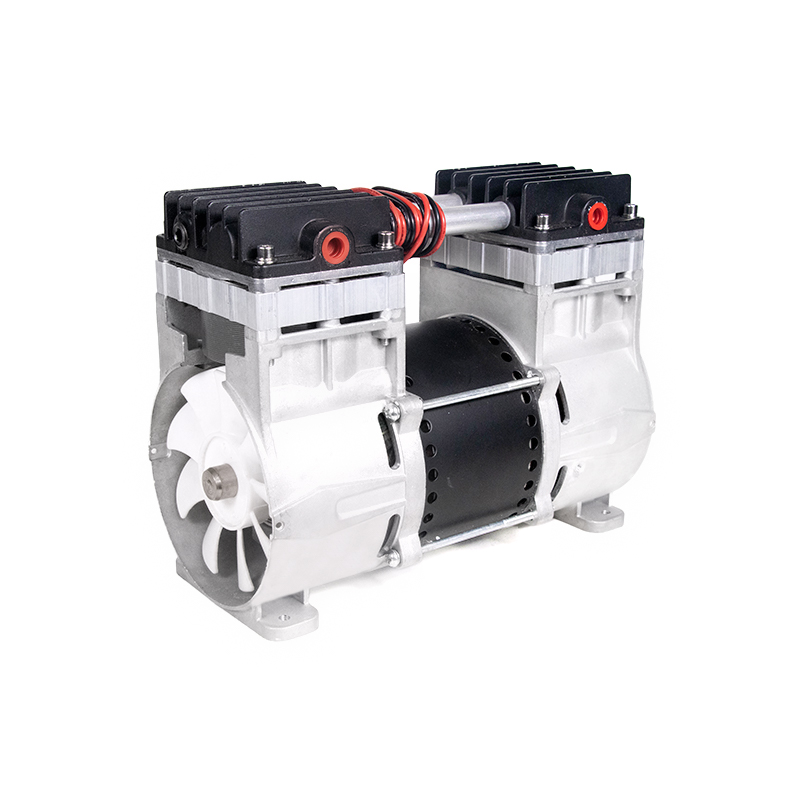

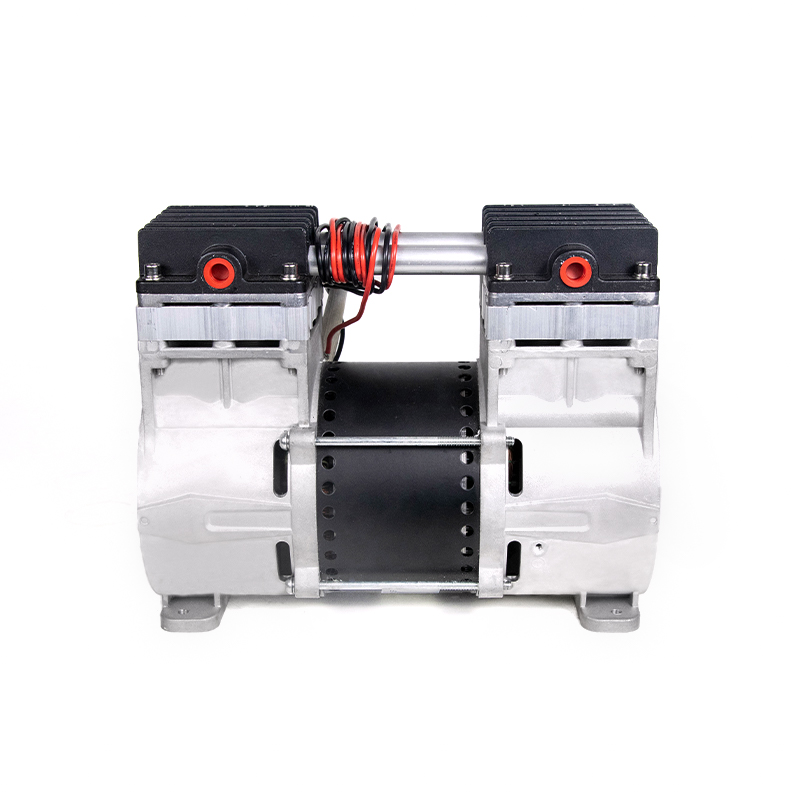

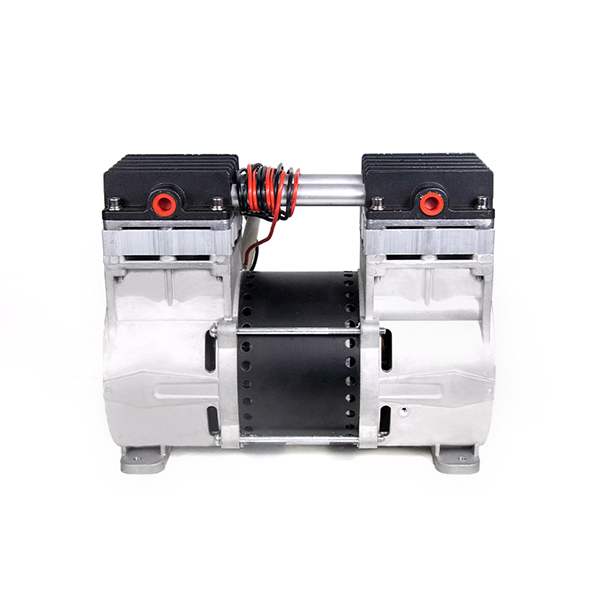

Name: HC750A2X

Type: HC750A2X

Voltage : 220V 50Hz/ 110V 60Hz

Vacuum pressure:-92Kpa/-98Kpa

Power: ≤360W ;

Noise : ≤58dB(A) ;
Speed: 1440rpm/1700rmp
Design running Temperature : 0℃-155℃ ;
Dimension : 276*130*206mm
Net weight : 9.5 KG

Product details

More Specification
Voltage	220V 50Hz	220V 50Hz	110V 60Hz	110V 60Hz
Power	≤360W	≤360W	≤500W	≤500W
Vacuum flow rate	126L/min@-92Kpa	60L/min@-98Kpa	140 L/min@-92Kpa	66 L/min@-98Kpa
Speed	1400rpm	1400rpm	1700rpm	1700rpm
Noise	≤58dB(A)
Temperature	-5℃-40℃
Packing	2 pcs / carton case
Dimension	276130206 mm
Installation size	89*223 mm
Net Weight	9.5 kg
Accessories	1xcapacitor, 1x silencer, 4x rubber feet

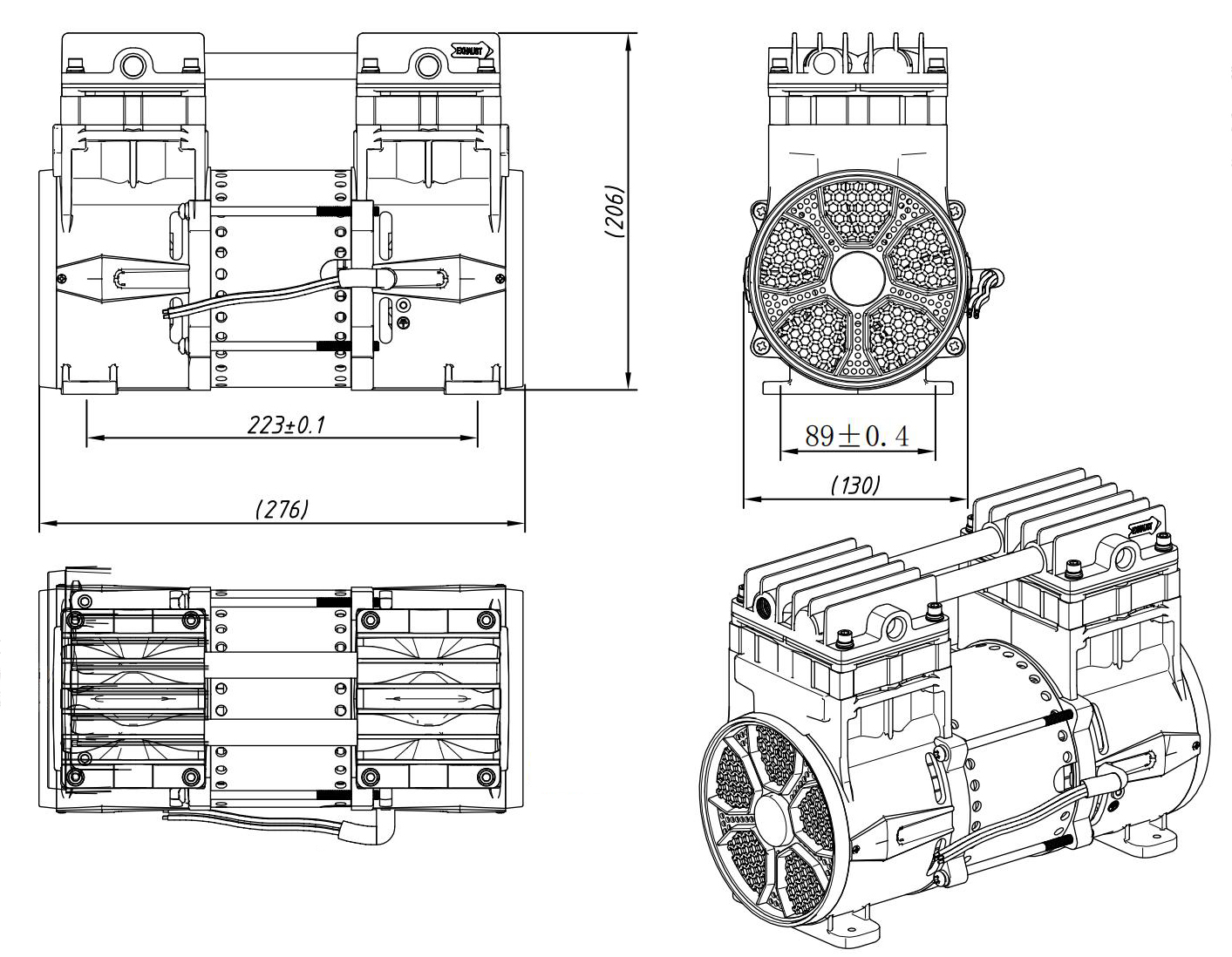

Drawing:
