Location: Home > Products - Vacuum pump with plug


Products

Name: HC550A2X-1
Type: HC550A2X-1
Voltage : 220V 50Hz/ 110V 60Hz

Vacuum pressure:-90Kpa/-98Kpa

Power: ≤252W ;

Noise : ≤54dB(A) ;
Speed: 1440rpm/1700rmp
Design running Temperature : 0℃-155℃ ;
Dimension : 271*128*180mm
Net weight : 8.6 KG
Product details

More Specification

Voltage

220V 50Hz

220V 50Hz

110V 60Hz

110V 60Hz

Power

≤230W

≤230W

≤252W

≤252W

Vacuum flow rate

100L/min@-92Kpa

50L/min@-98Kpa

126 L/min@-92Kpa

63 L/min@-98Kpa

Speed

1400rpm

1400rpm

1700rpm

1700rpm

Noise

≤54dB(A)

Temperature

-5℃-40℃

Packing

2 pcs / carton case

Dimension

271*128*180 mm

Installation size

89*223 mm

Net Weight

8.6 kg

Accessories

1x silencer, 4x rubber feet


Drawing:

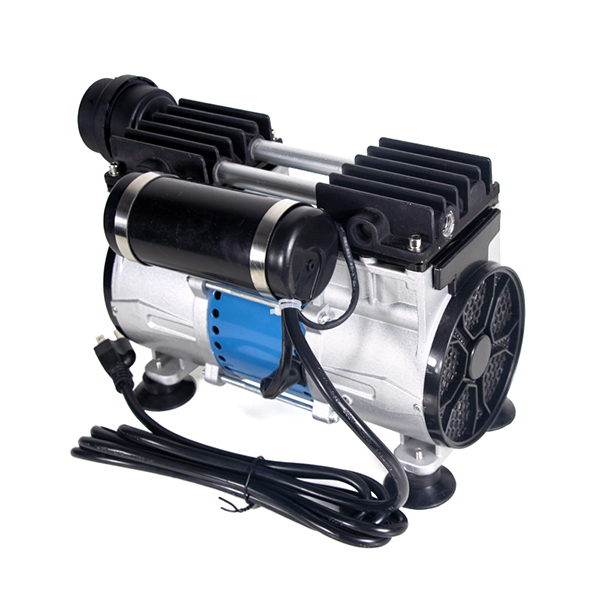

Picture:
