Products

Name: HC550A2

Type: HC550A2

Voltage : 220V 50Hz/ 110V 60Hz

Vacuum pressure:-90Kpa/-98Kpa

Power: ≤380W ;

Noise : ≤54dB(A) ;
Speed: 1440rpm/1700rmp
Design running Temperature : 0℃-100℃ ;
Dimension : 271*128*194mm
Net weight : 10 KG

Product details

More Specification
Voltage	220V 50Hz	220V 50Hz	110V 60Hz	110V 60Hz
Power	≤380W	≤380W	≤380W	≤380W
Vacuum flow rate	100L/min@-92Kpa	50L/min@-98Kpa	120 L/min@-92Kpa	60 L/min@-98Kpa
Speed	1400rpm	1400rpm	1700rpm	1700rpm
Noise	≤54dB(A)
Temperature	-5℃-40℃
Packing	2 pcs / carton case
Dimension	271128194 mm
Installation size	89*223 mm
Net Weight	10 kg
Accessories	1xcapacitor, 1x silencer, 4x rubber feet

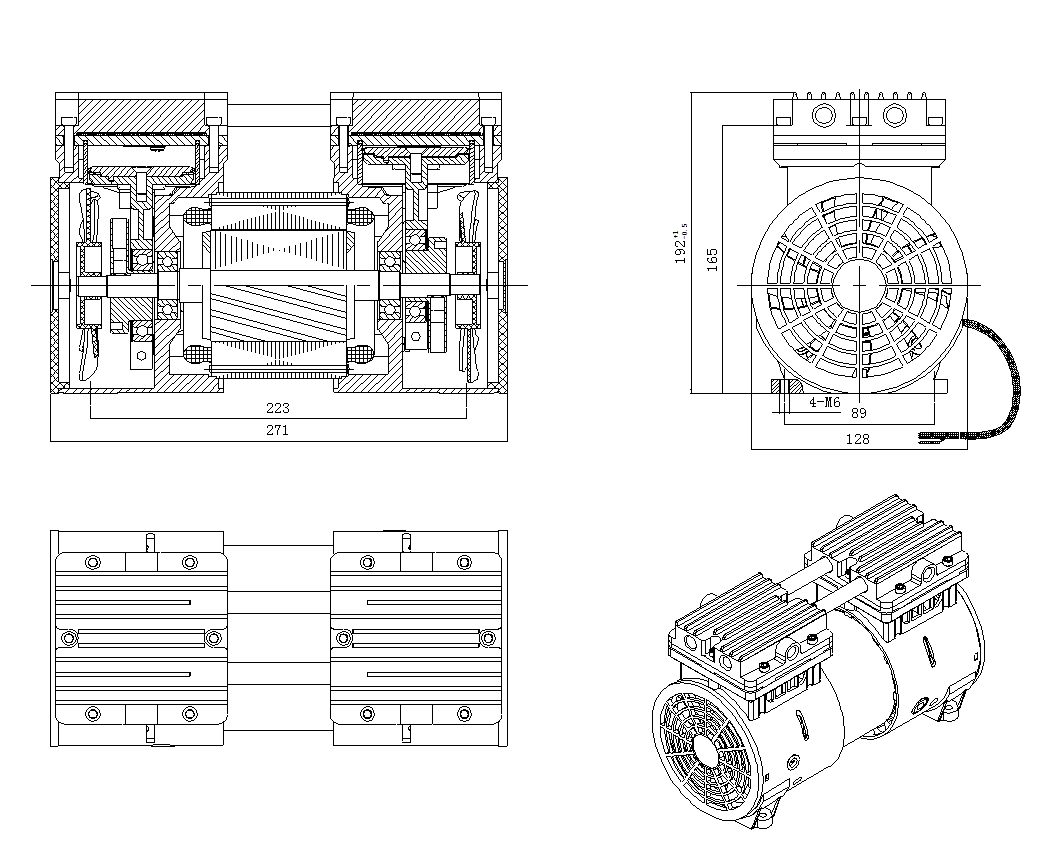

Drawing:

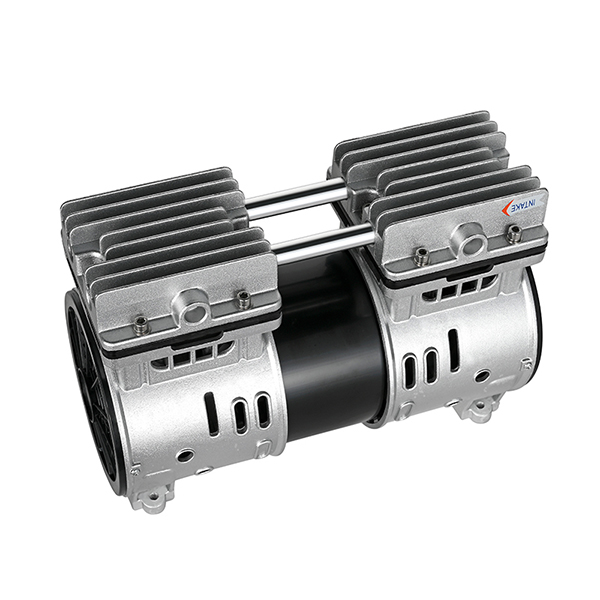

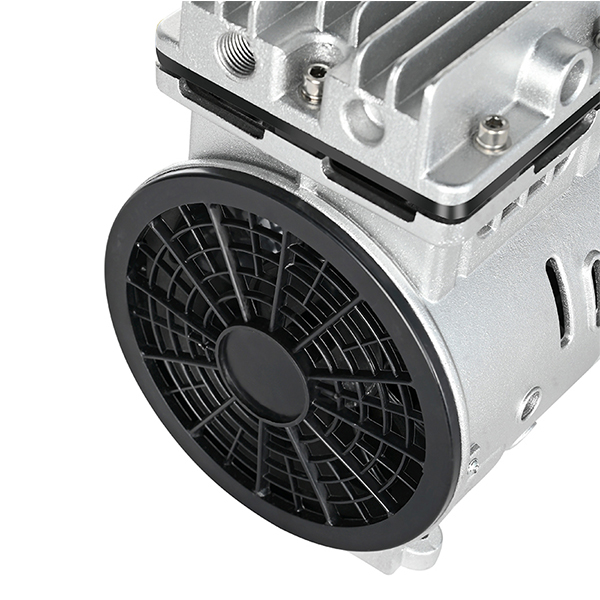

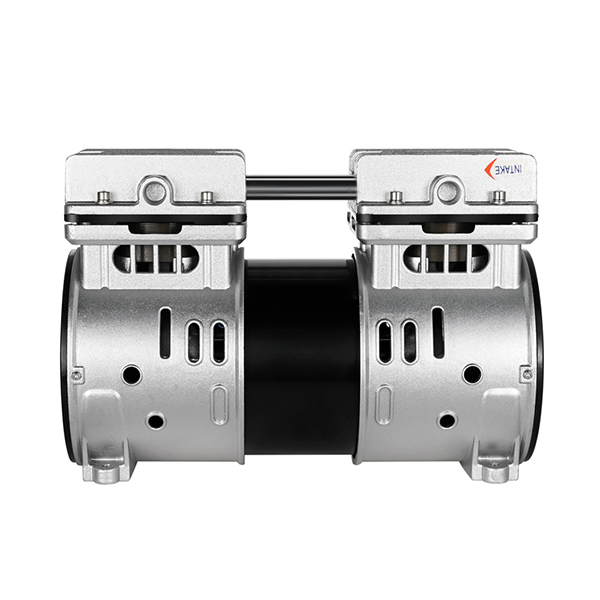

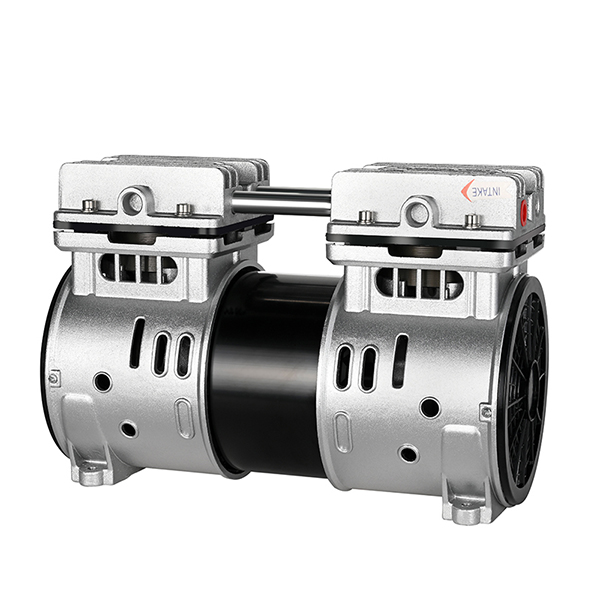

Picture:
