Name: HC210D Oilless Air Pump

Type: HC210D

Voltage: 12V/24V/48V

Air flow rate: 62L/min

Pressure: 7 bar

Power: 210 W

Noise: ≤50dB(A)

Speed: 17000rpm

Dimension:177*98*150mm

Net weight: 3 kg

With controller

Product details

Product parameters:

Model	HC210D
Voltage	DC12V /24V /48V
Power	≤210W
Air fiow rate	62 L/min@ 0 bar
	50 L/min@ 2 bar
	35 L/min@ 4 bar
	17 L/min@ 6 bar
	11 L/min@ 7 bar
Dimension	17798150 mm
Installation size	70*114 mm
Rated speed	1700rpm
Noise	≤50dB(A)
Packing	2 pcs / carton case
Net weight	3 kg
Operating ambient air temperature	-5℃~40℃
Accessories	1x Controller ,4x Rubber Feet ,1x air Filter

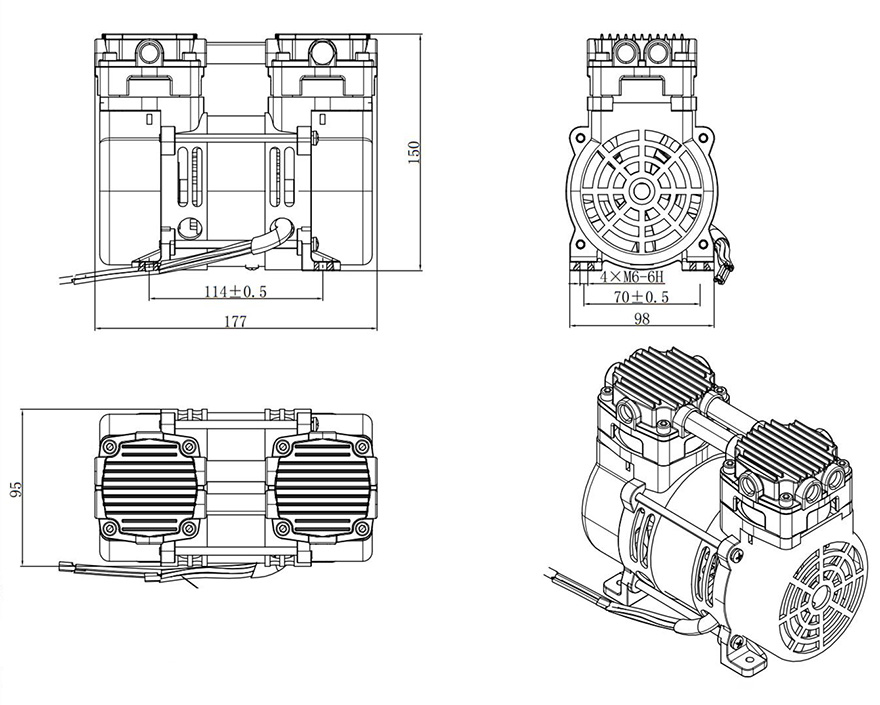

Drawing:

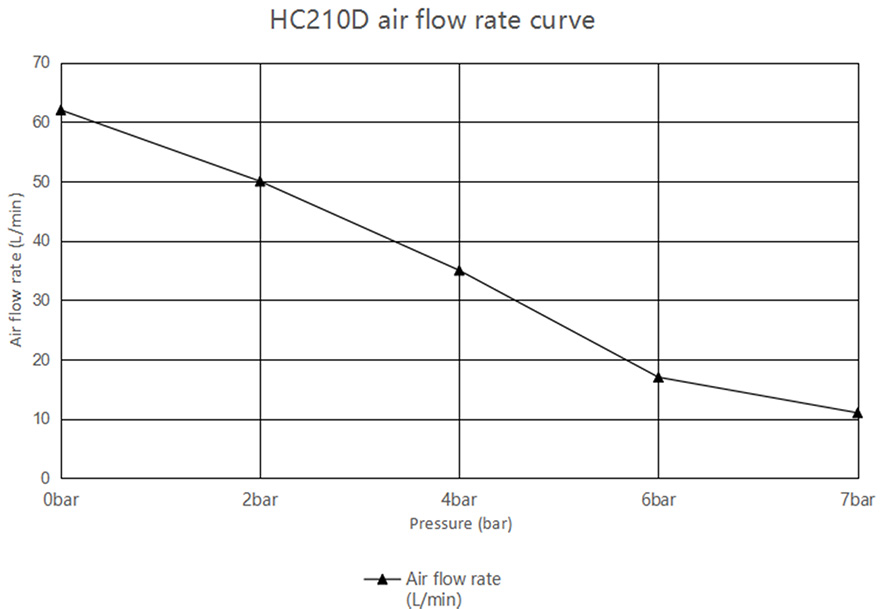

Product flow curve graph:

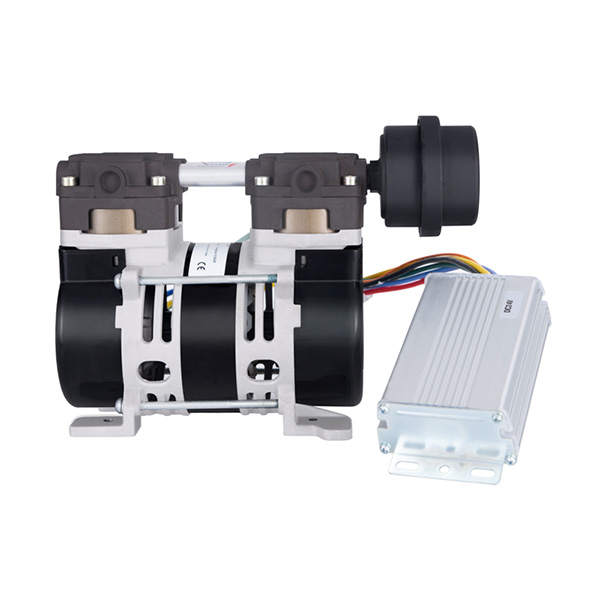

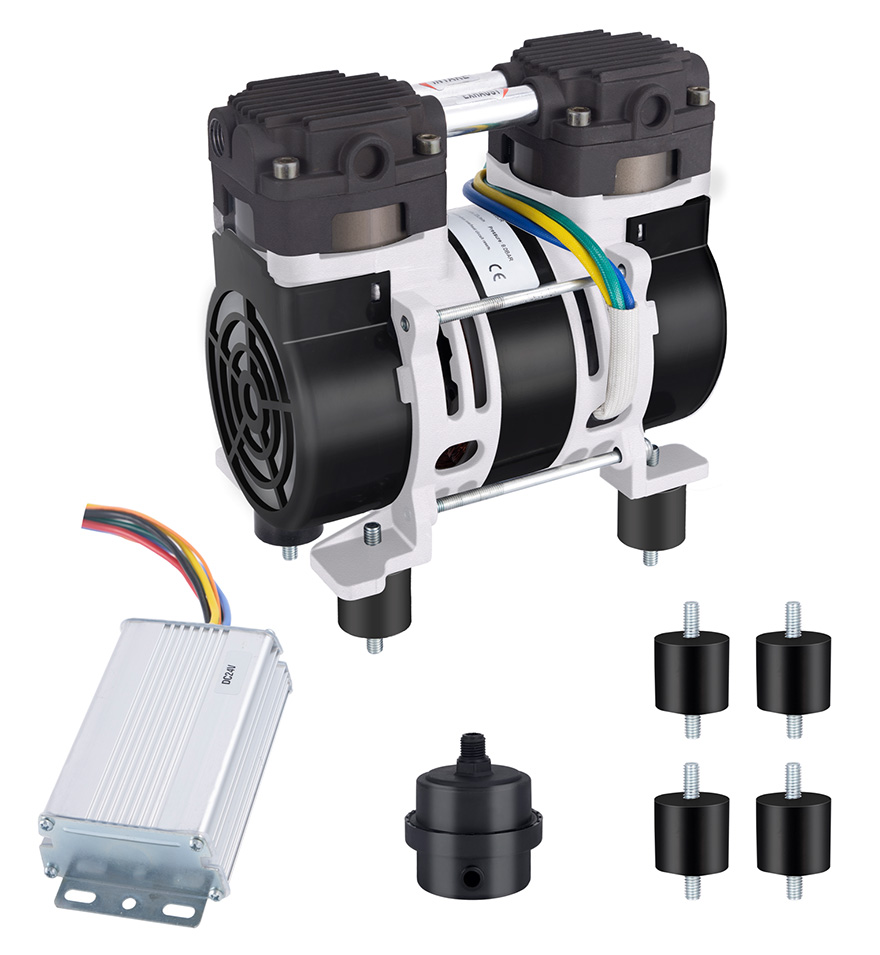

Product show:
