Location: Home > Products - Complete Machine


Products

Name: HC7501-9L
Type: HC7501-9L
Model HC7501-9L
Voltage 220V 50Hz  / 110V 60Hz
Air flow rate 100L/min@8 bar
Speed 1440 rpm /1700 rpm
Noise ≤62dB(A)
Net Dimension 470*190*420 mm
Weight 12 KG
Tank 9 L

Product details

Technical information：

Model

Voltage

Power

Air flow rate

Tank

Net Dimension

Weight

(L*W*H) CM

(KG)

HC7501-9L

220V/50HZ
110V/60HZ

750W

190 L/min@0 bar
172 L/min@2 bar
145 L/min@4 bar
125 L/min@6 bar
100 L/min@8 bar

9 L

47*19*42

12

0.75 HP

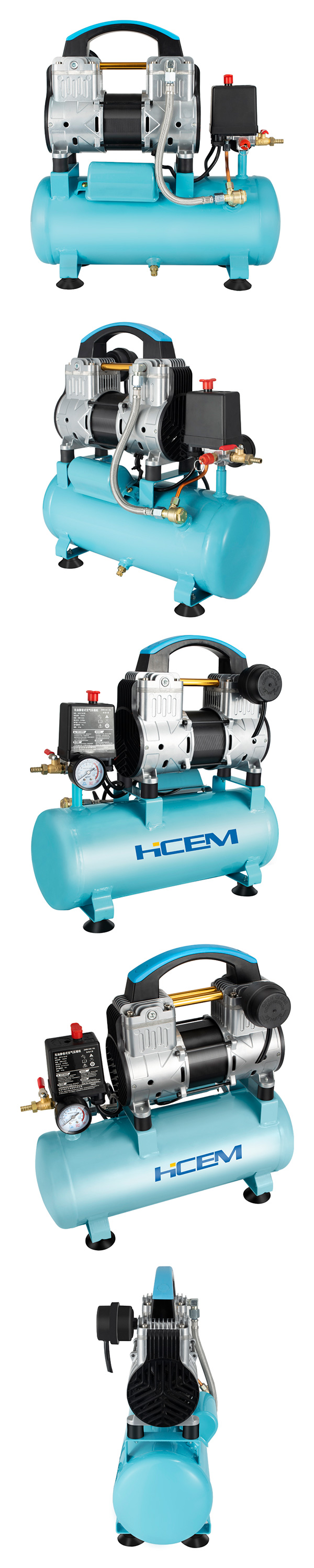

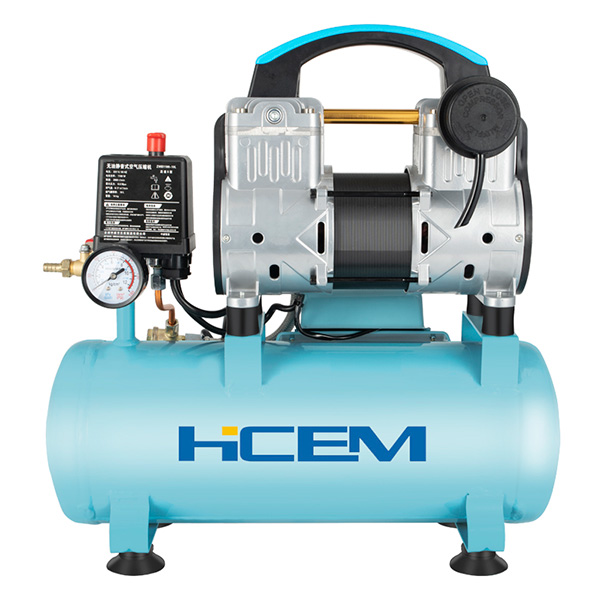

Product picture：
