Location: Home > Products - Standard Vacuum Pump


Products

Name: HC100A2
Type: HC100A2

Voltage :220V 50Hz/110V 60Hz ;



Vacuum Pressure  :-98Kpa/-92Kpa ;



Noise : ≤52dB(A) ;



Speed: 1440rpm / 1700rpm ;



Temperature : -5℃-40℃;



Dimension : 176*96*146 mm ;



Net weight :  3.3 Kg

Product details

Product parameters:

Model
 Voltage
 Power
 Vacuum flow rate
 Dimension
 Installation size
 Noise
 Net weight
HC100A2-25/-98
 220V/50Hz
 80W
 25L/min@-98Kpa
 176*96*146mm
 114*70mm
 ≤52dB(A)
 3.3kg
HC100A3-50/-92
 220V/50Hz
 80W
 50L/min@-92Kpa
 176*96*146mm
 114*70mm
 ≤52dB(A)
 3.3kg
HC100A2-30/-98
 220V/50Hz
 100W
 30L/min@-98Kpa
 176*96*146mm
 114*70mm
 ≤52dB(A)
 3.3kg
HC100A3-60/-92
 220V/50Hz
 100W
 60L/min@-92Kpa
 176*96*146mm
 114*70mm
 ≤52dB(A)
 3.3kg
HC100B2-30/-98
 110V/60Hz
 100W
 30L/min@-98Kpa
 176*96*146mm
 114*70mm
 ≤52dB(A)
 3.3kg
HC100B3-60/-92
 110V/60Hz
 100W
 60L/min@-92Kpa
 176*96*146mm
 114*70mm
 ≤52dB(A)
 3.3kg

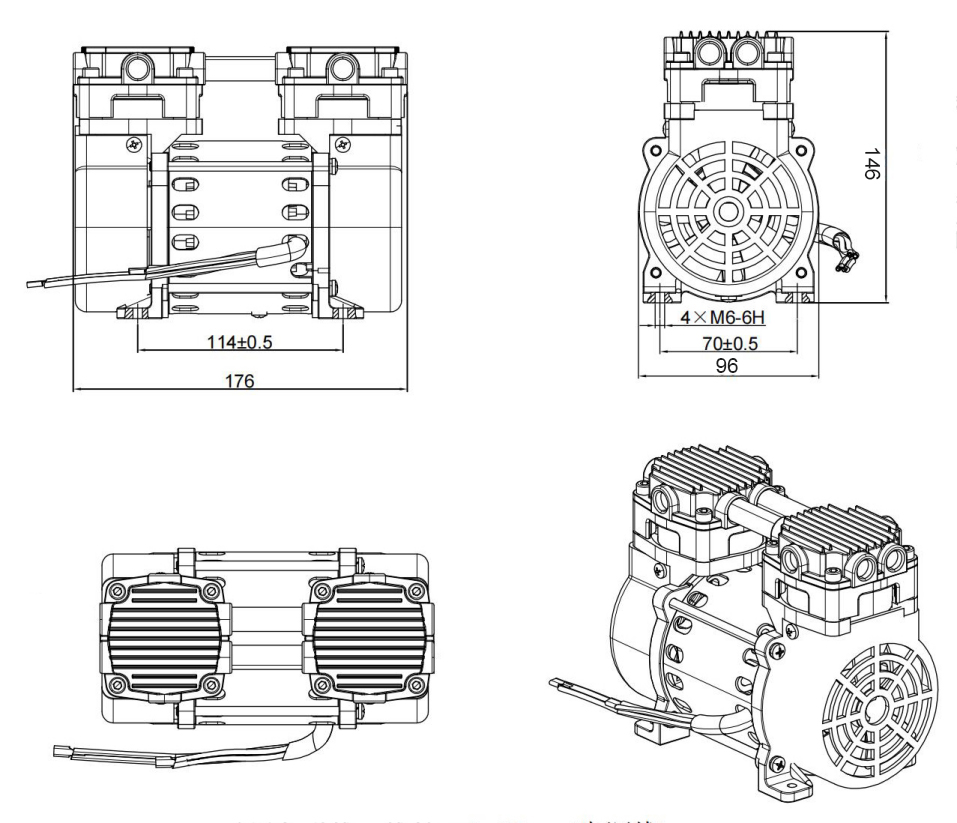

Drawing:

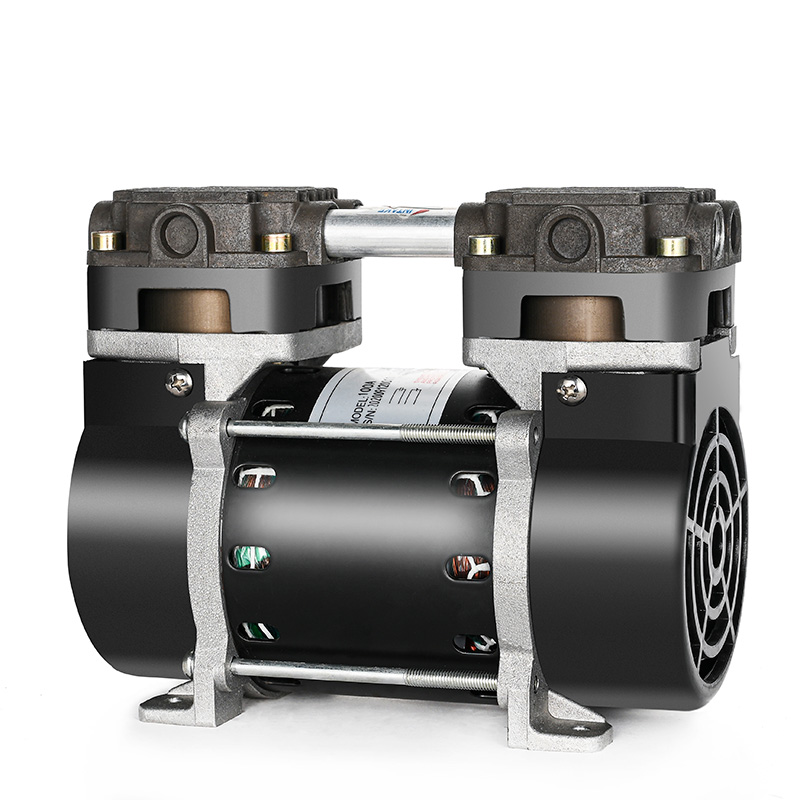

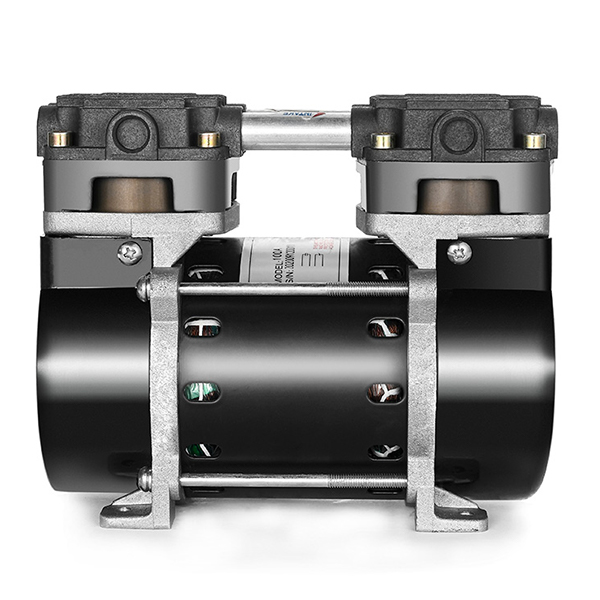

Product show:
