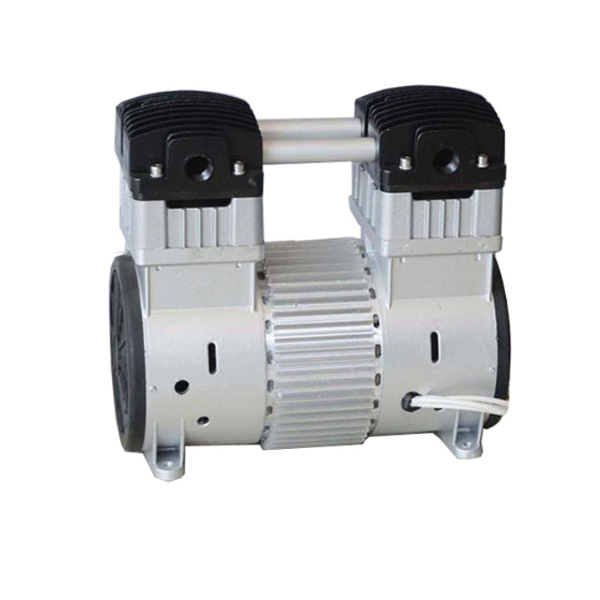

Name: HC1100D2
Type: HC1100D2


Voltage : According to your requirements ;

Vacuum flow rate : 200 L/min @ -92 Kpa ; (One-Grade vacuum)
                             100 L/min @ -98 Kpa ; (Two-Grade vacuum)

Vacuum level : 600mmHg - 735mmHg ;

Power: 600 W ;

Noise : ≤58dB(A) ;

Speed: 1700rpm ;

Temperature : -5℃-40℃

Thermal protector : 135℃


Dimension: 380*127*288 mm


Weight: 19.5 kg

Product details

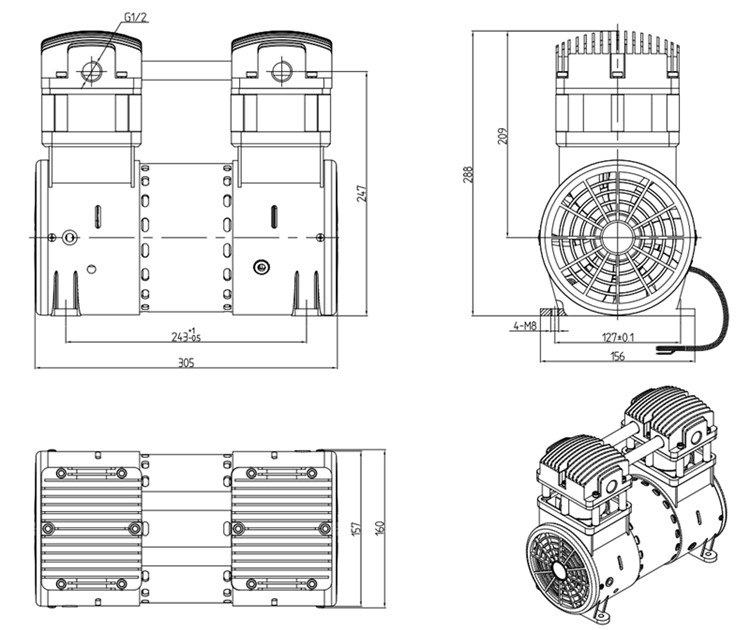

Drawing:

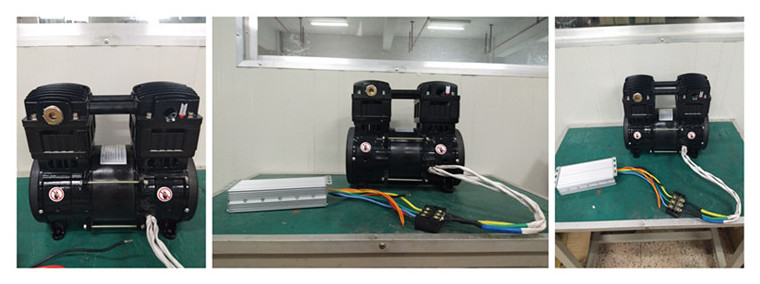

Product show:
