Name: HC5504-120/HC7504-120
Type: HC5504-120/HC7504-120
Model HC5504-120L/HC7504-120L
Voltage 220V 50Hz  / 110V 60Hz
Air flow rate 140L/min@8 bar，240L/min@8bar
Speed 1440 rpm /1700 rpm
Noise ≤52dB(A)
Net Dimension 1090*407*732mm
Weight 94 KG
Tank 120 L

Product details

Technical information：

Model

Voltage

Power

Air flow rate

Tank

Net Dimension

Weight

(L*W*H) CM

(KG)

HC5504-120L

220V/50HZ
110V/60HZ

4*550W

408 L/min@0 bar
280 L/min@2 bar
220 L/min@4 bar
184 L/min@6 bar
140 L/min@8 bar

120 L

109*40.7*73.2

94

3.0 HP

HC7504-120L

4*750W

540 L/min@0 bar
460 L/min@2 bar
372 L/min@4 bar
264 L/min@6 bar
240 L/min@8 bar

120 L

110*40.7*73.2

102

4.0 HP

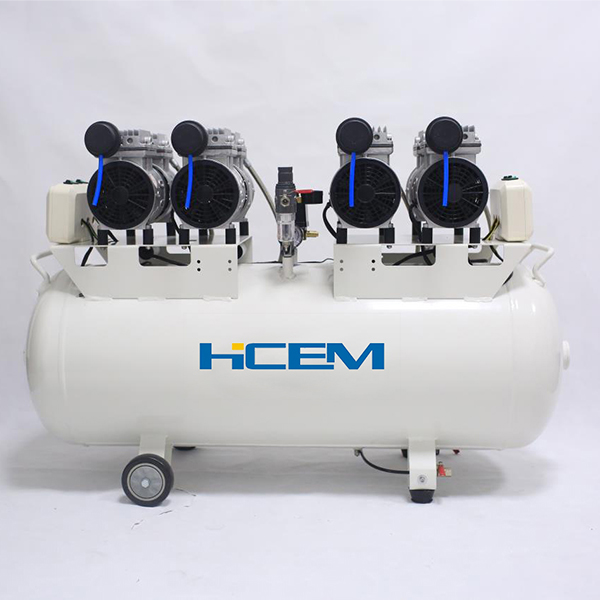

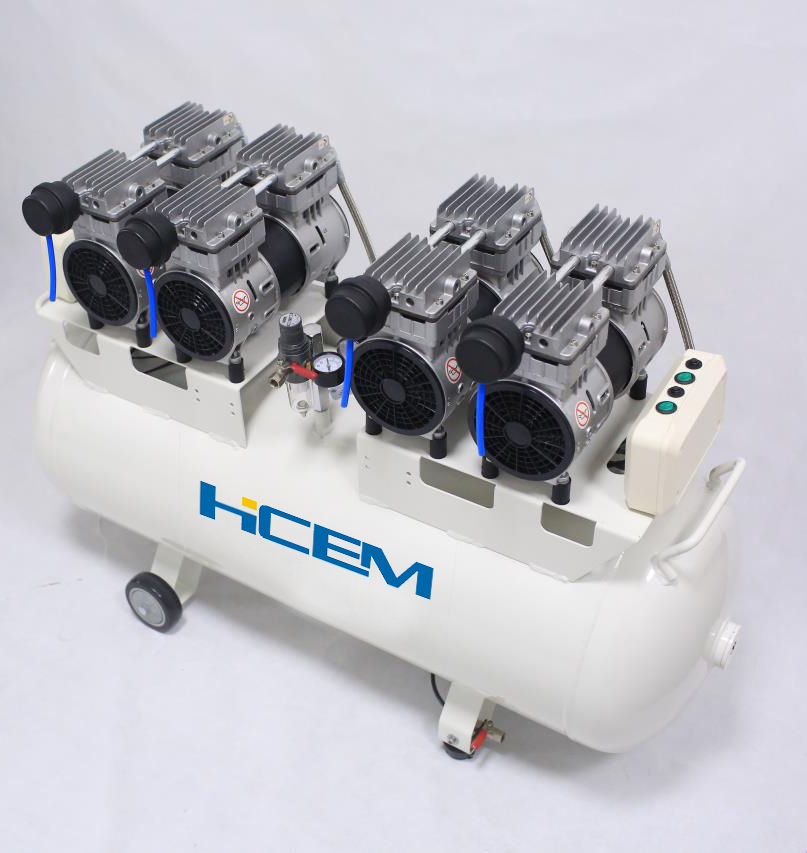

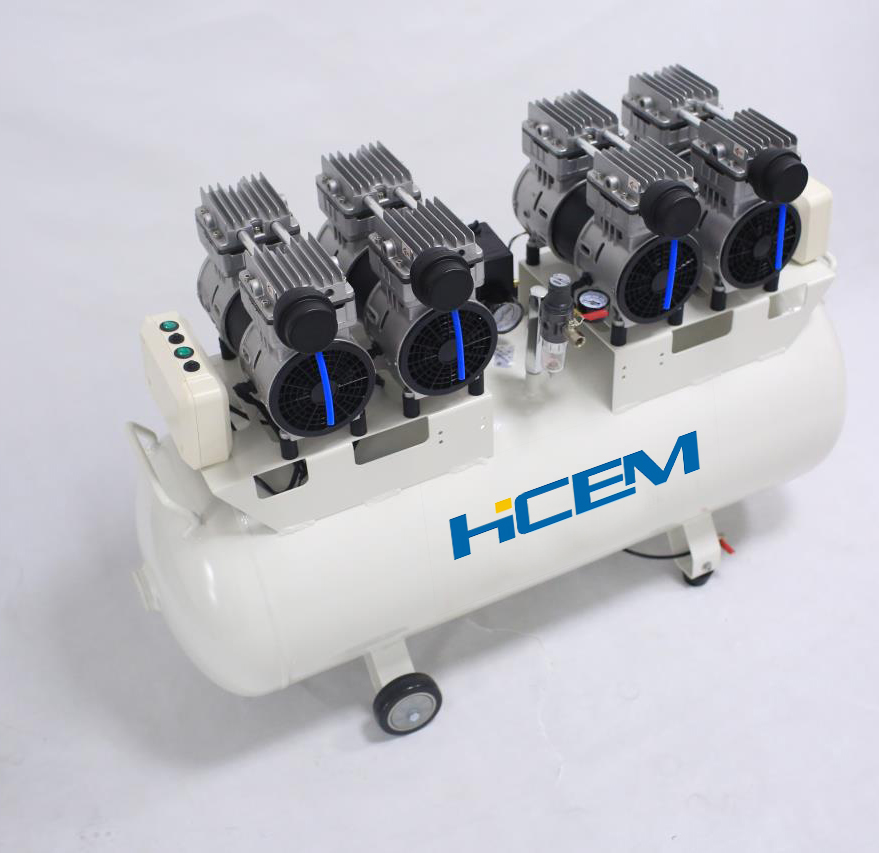

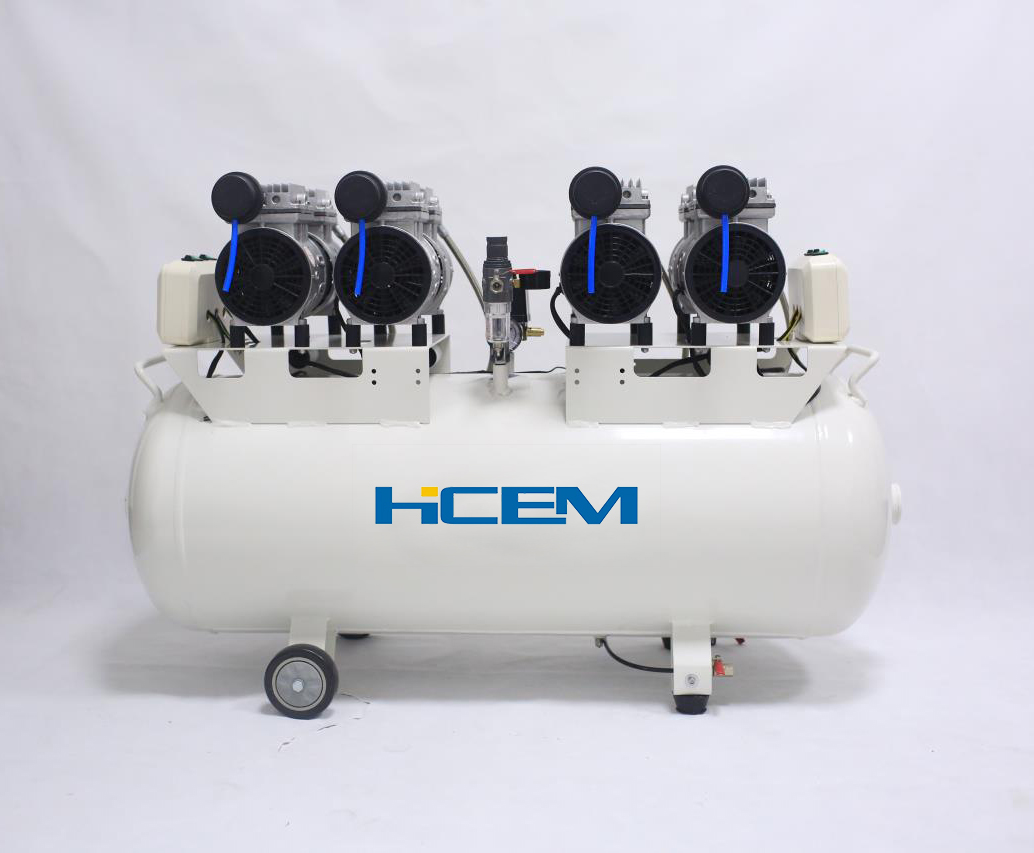

Product picture：
