Name: HC5502-50/HC7502-50 Aluminum Tank
Type: HC5502-50/HC7502-50
Model HC5502-50/HC7502-50
Voltage 220V 50Hz  / 110V 60Hz
Air flow rate 70L/min@8 bar，120L/min@8bar
Speed 1440 rpm /1700 rpm
Noise ≤52dB(A)
Net Dimension 760*365*595 mm
Weight 50 KG
Tank 50 L

Product details

Technical information：

Model

Voltage

Power

Air flow rate

Tank

Net Dimension

Weight

(L*W*H) CM

(KG)

HC5502-50

220V/50HZ
110V/60HZ

2*550W

204 L/min@0 bar
140 L/min@2 bar
110 L/min@4 bar
92 L/min@6 bar
70 L/min@8 bar

50 L

75*36.5*59.5

50

1.5 HP

HC7502-50

2*750W

270 L/min@0 bar
230 L/min@2 bar
186 L/min@4 bar
132 L/min@6 bar
120 L/min@8 bar

50 L

75*36.5*59.5

50

2.0 HP

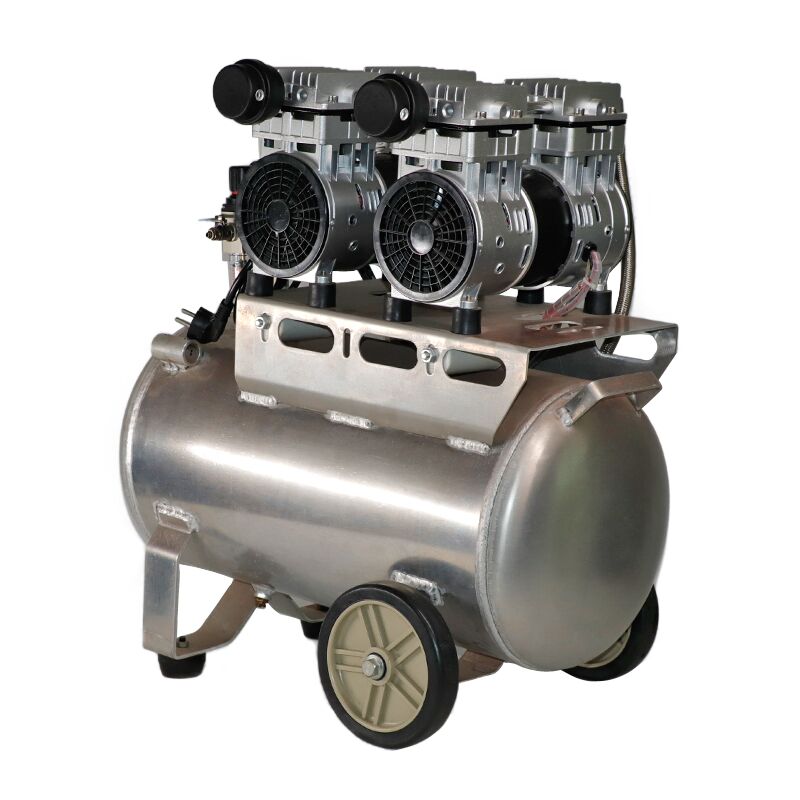

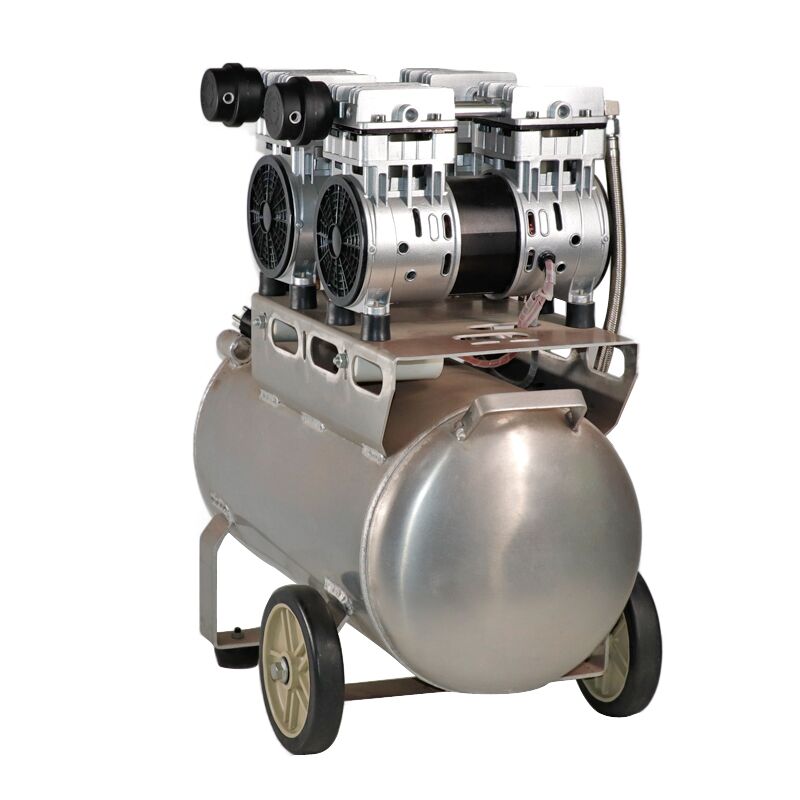

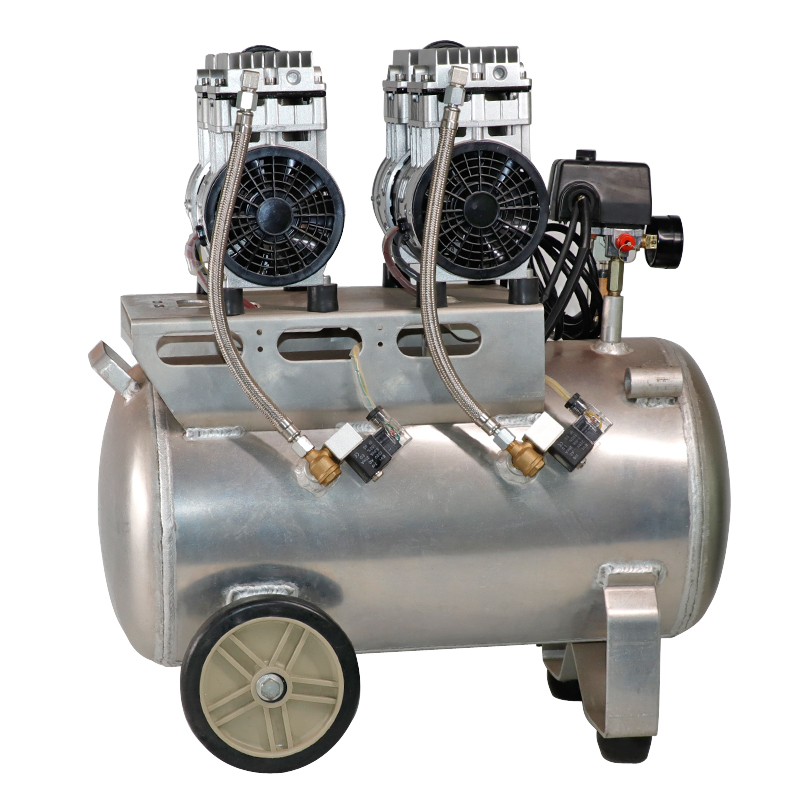

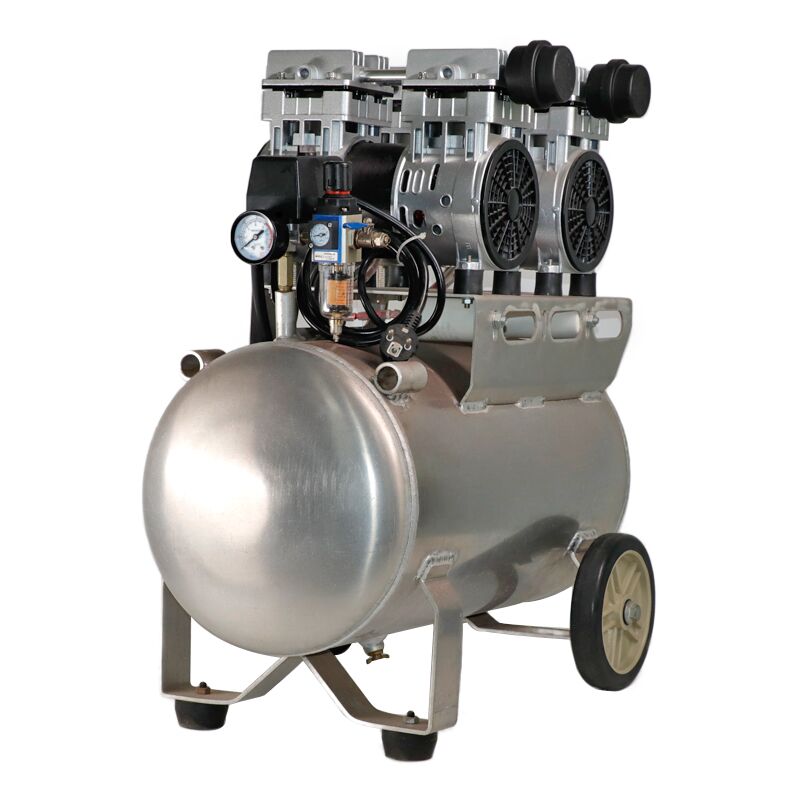

Product picture：
