Name: HC5501-24/HC7501-24 Aluminum tank
Type: HC5501-24/HC7501-24
Model HC5501-24/HC7501-24
Voltage 220V 50Hz  / 110V 60Hz
Air flow rate 35L/min@8 bar，60L/min@8bar
Speed 1440 rpm /1700 rpm
Noise ≤52dB(A)
Net Dimension 435*435*710 mm
Weight 18.5 KG
Tank 24 L

Product details

Technical information:

Model

Voltage

Power

Air flow rate

Tank

Net Dimension

Weight

(L*W*H) CM

(KG)

HC5501-24

220V/50HZ
110V/60HZ

550W

102 L/min@0 bar
70 L/min@2 bar
55 L/min@4 bar
46 L/min@6 bar
35 L/min@8 bar

24 L

43.5*43.5*71

18.5

0.75 HP

HC7501-24

750W

135 L/min@0 bar
115 L/min@2 bar
93 L/min@4 bar
66 L/min@6 bar
60 L/min@8 bar

24 L

43.5*43.5*71

18.5

1.0 HP

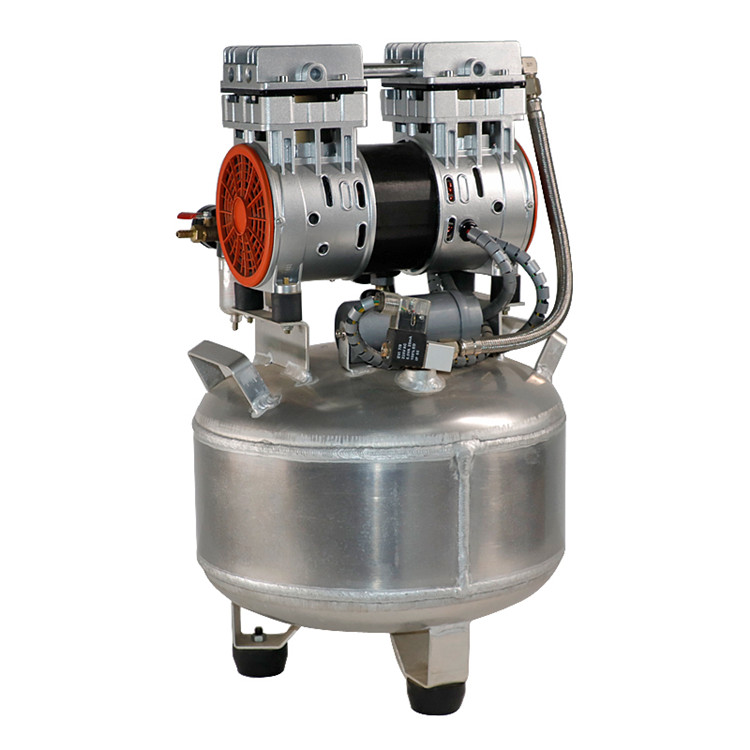

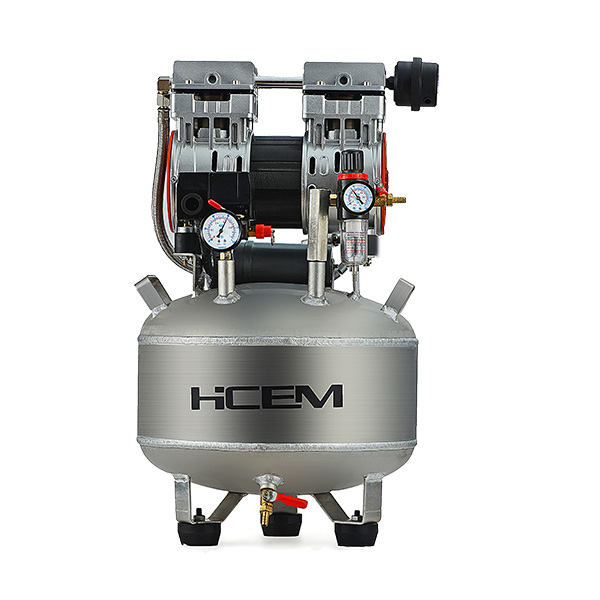

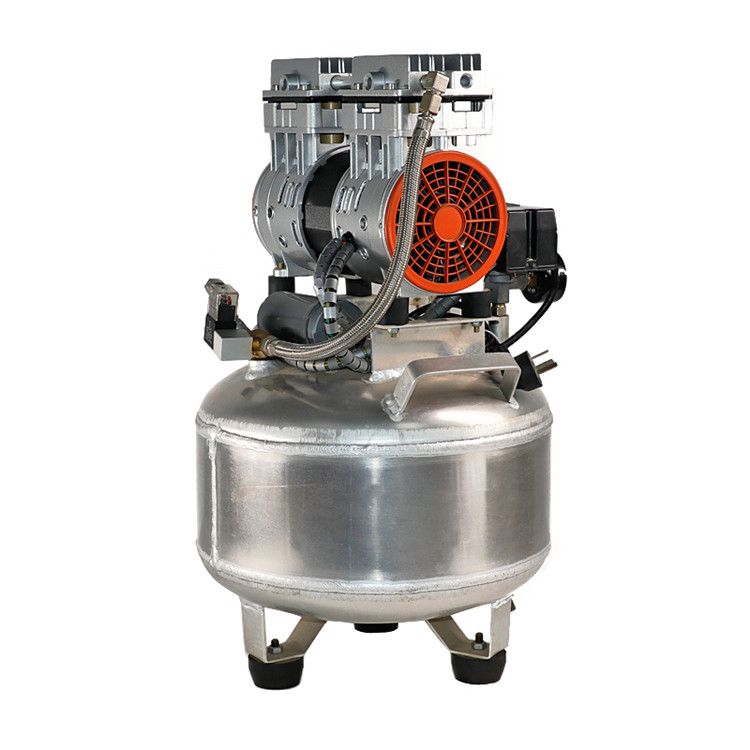

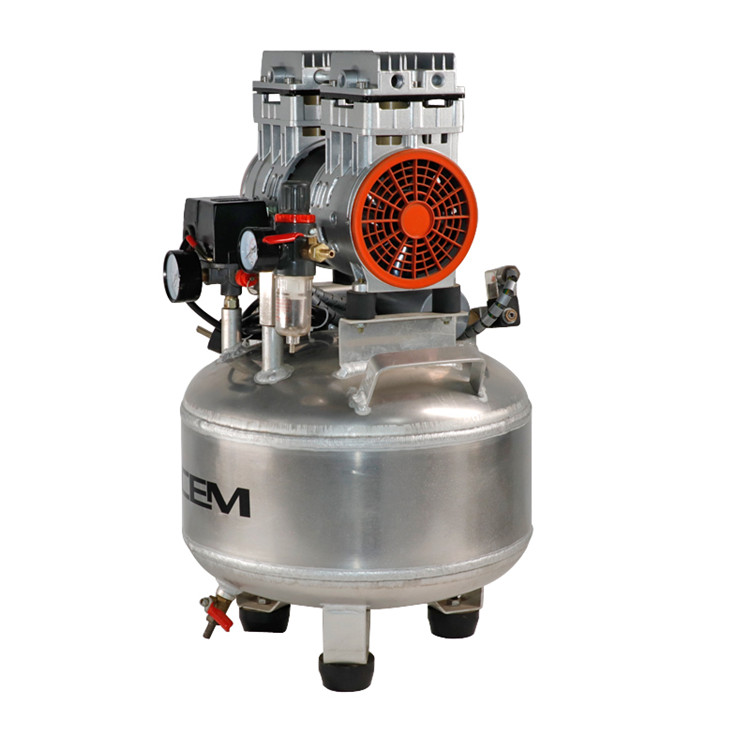

Product picture：
