Name: HC5501-30X/HC7501-30X
Type: HC5501-30X/HC7501-30X


Model HC5501-30X/HC7501-30X
Voltage 220V 50Hz  / 110V 60Hz
Air flow rate 35L/min@8 bar，60L/min@8bar
Speed 1440 rpm /1700 rpm
Noise ≤52dB(A)
Net Dimension 550*550*850 mm
Weight 62 KG
Tank 30 L


Product details

Technical information：

Model

Voltage

Power

Air flow rate

Tank

Dimensions

Weight

(L*W*H) CM

(KG)

HC5501-30X

220V/50HZ
110V/60HZ

550W

102 L/min@0 bar
70 L/min@2 bar
55 L/min@4 bar
46 L/min@6 bar
35 L/min@7 bar

30 L

55*55*85

62

0.75 HP

HC7501-30X

750W

135 L/min@0 bar
115 L/min@2 bar
93 L/min@4 bar
66 L/min@6 bar
60 L/min@8 bar

30 L

55*55*85

65

1.0HP

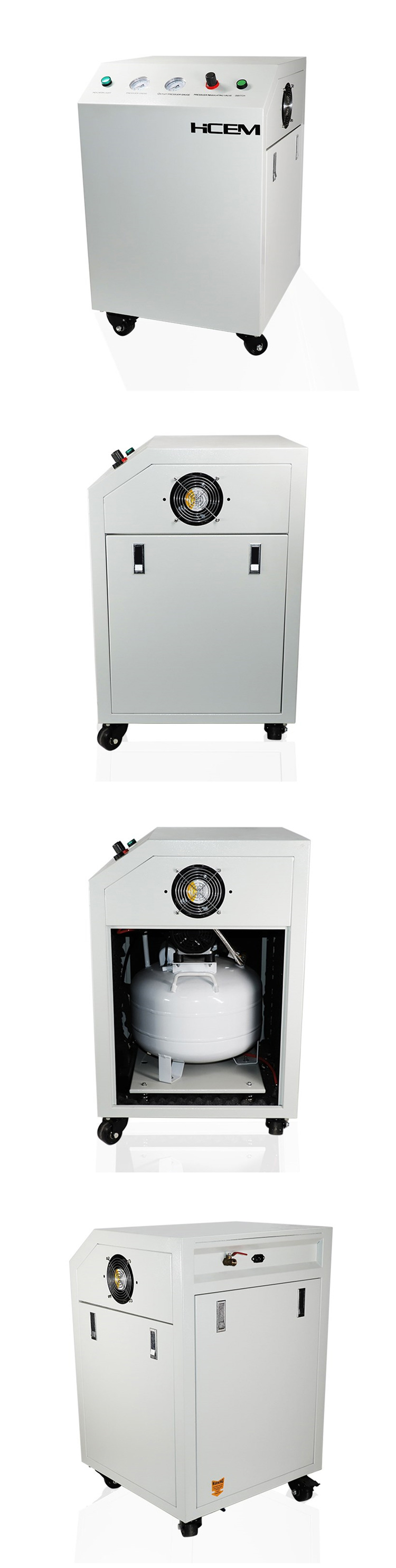

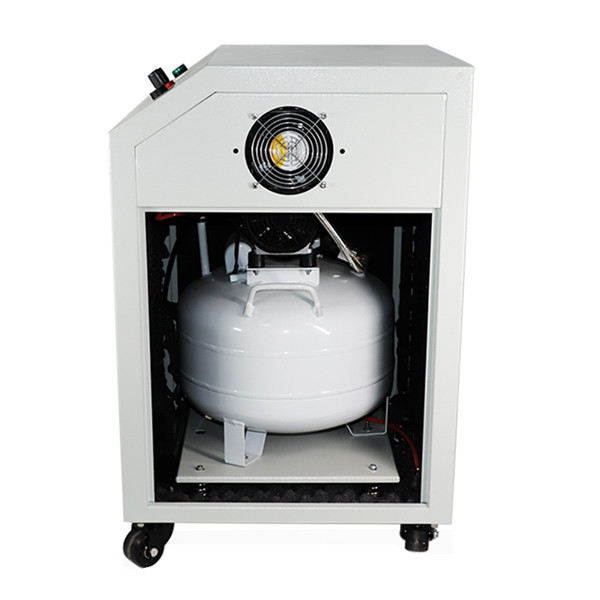

Product show:
