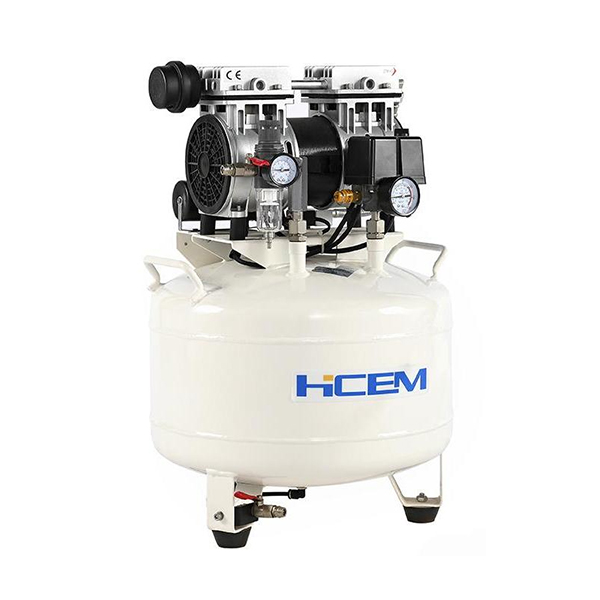

Name: HC5501-30/HC7501-30
Type: HC5501-30/HC7501-30
Model HC5501-30/HC7501-30
Voltage 220V 50Hz  / 110V 60Hz
Air flow rate 35L/min@8bar，60L/min@8bar
Speed 1440 rpm /1700 rpm
Noise ≤62dB(A)
Net Dimension  690*270*550 mm
Net Weight  24 KG
Product details

 Technical specification:

Model

Voltage

Power

Air flow rate

Tank

Net Dimension

Weight

(L*W*H) CM

(KG)

HC5501-30

220V/50HZ
110V/60HZ

550W

102 L/min@0 bar
70 L/min@2 bar
55 L/min@4 bar
46 L/min@6 bar
35 L/min@8 bar

30 L

69*27.6*50

24

0.75 HP

HC7501-30

750W

135 L/min@0 bar
115 L/min@2 bar
93 L/min@4 bar
66 L/min@6 bar
60 L/min@8 bar

30 L

69*27*50

24

1.0 HP

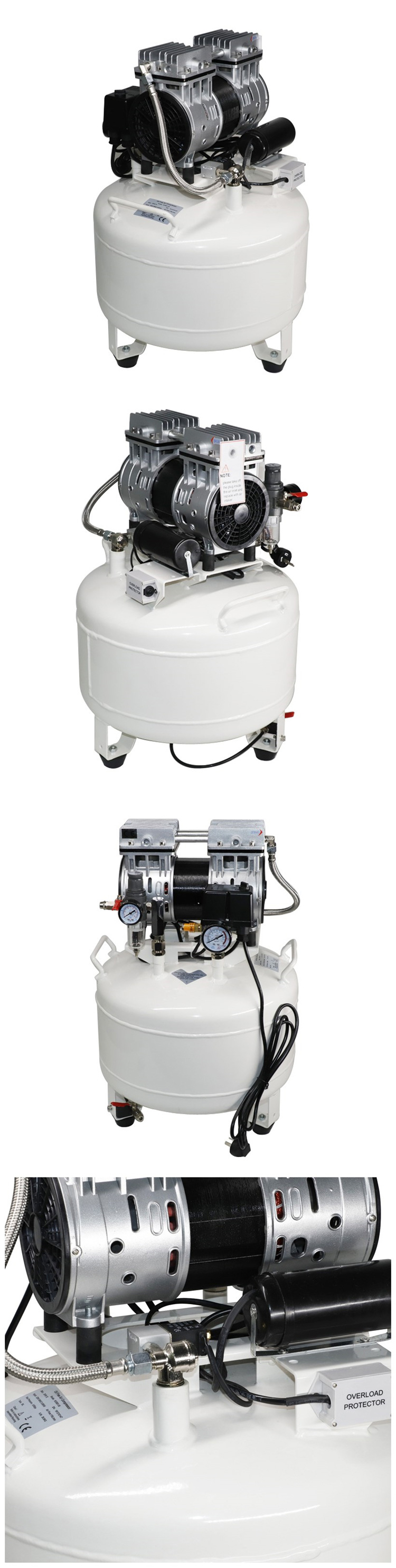

Pictures:
