Products

Name: HC1500A2

Type: HC1500A2 OIL FREE VACUUM PUMP

Voltage : 220V 50Hz/110V 60Hz ;

Vacuum Pressure:-94Kpa/-98Kpa

Power: ≤550W ;

Noise : ≤60dB(A) ;

Speed: 1440rpm / 1700rpm ;

Temperature : -5℃-40℃ ;

Dimension : 305*156*288 mm ;

Net weight : 17.5 kg

Product details

More Specification
Voltage	220V 50Hz	220V 50Hz	110V 60Hz	110V 60Hz
Power	≤550W	≤550W	≤600W	≤600W
Vacuum flow rate	240 L/min@-94Kpa	120 L/min@-98Kpa	260 L/min@-94Kpa	130 L/min@-98Kpa
Speed	1400rpm	1400rpm	1700rpm	1700rpm
Noise	≤60dB(A)
Temperature	-5℃-40℃
Packing	1 pcs / carton case
Dimension	305156288 mm
Installation size	127*243 mm
Net Weight	17.5 kg
Accessories	1xcapacitor, 1x silencer, 4x rubber feet

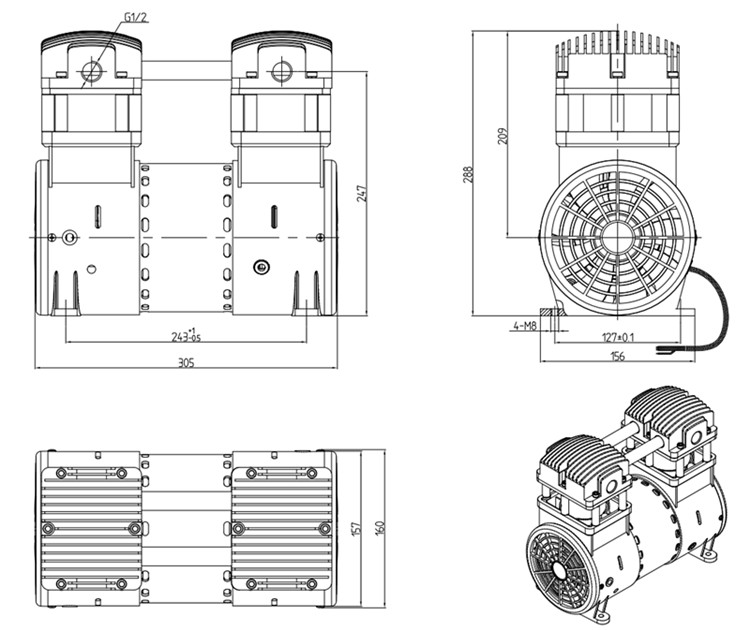

Drawing :

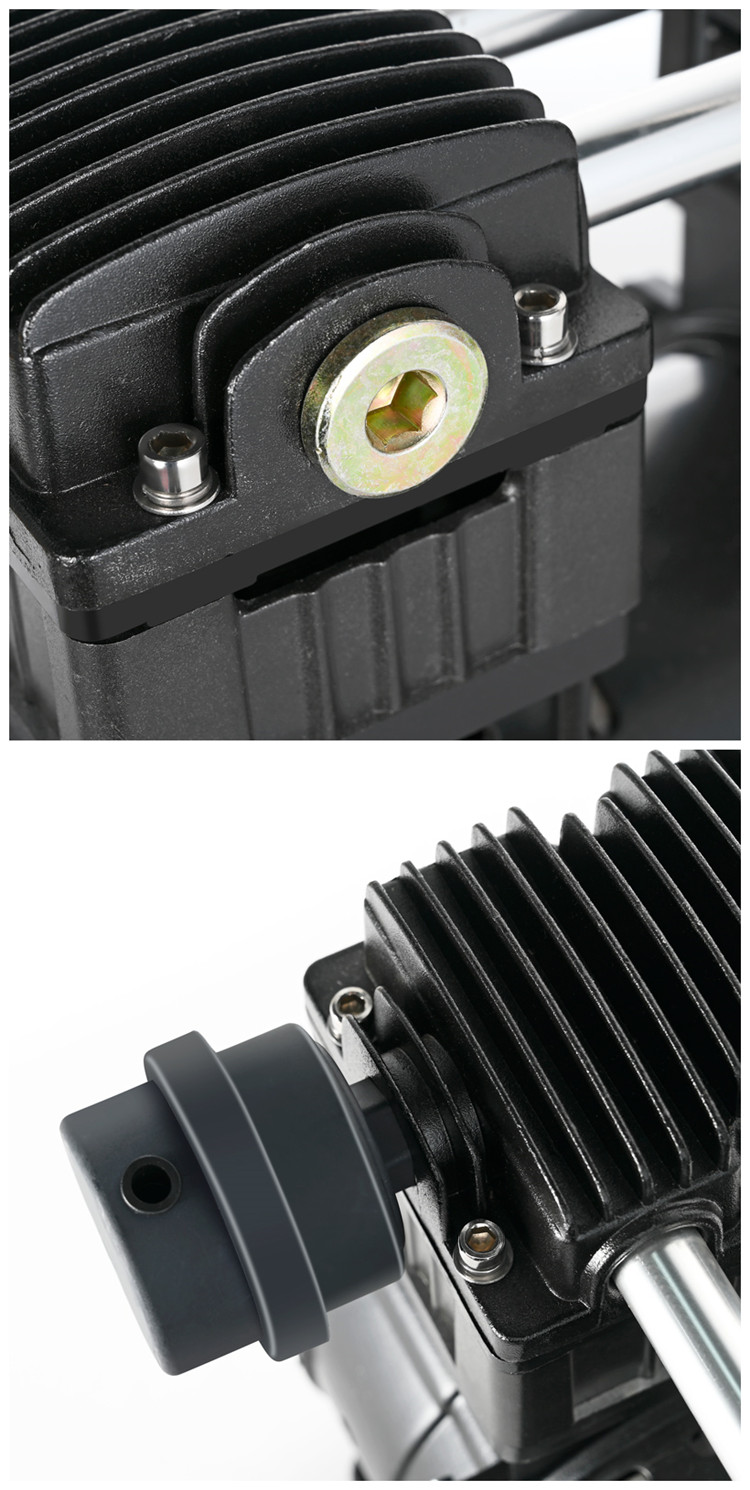

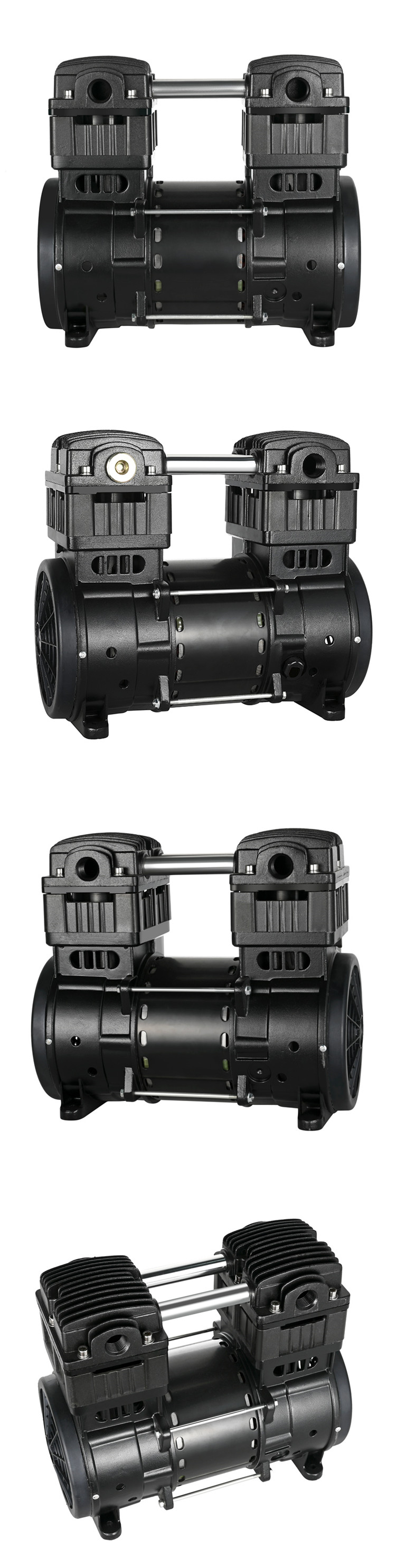

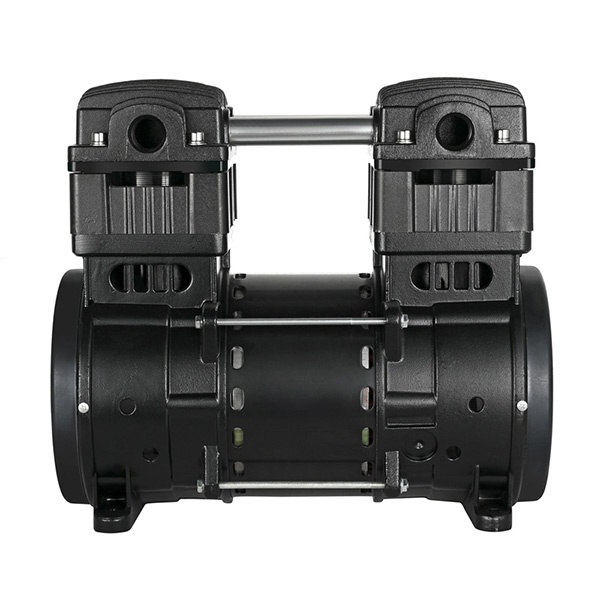

Product Show :
