Products

Name: HC1100D Oilless Air Pump

Type: HC1100D

Voltage: D24V/48V/110V

Air flow rate: 200L/min

Pressure: 8 bar

Power: 1100 W

Noise: ≤68dB(A)

Speed: 1700rpm

Dimension: 380 *160*288 mm

Net weight: 12.6 kg

With controller

Product details

Product parameters:

Model	HC1100D
Voltage	DC 24V / 48V / 110V/144V
Power	≤1100W
Air fiow rate	200 L/min@0 bar
	170 L/min@2 bar
	136 L/min@4 bar
	120 L/min@6 bar
	100 L/min@8 bar
Dimension	380 160288 mm
Installation size	127*298 mm
Rated speed	1700rpm
Noise	≤68dB(A)
Packing	1 pcs / carton case
Net weight	12.6 kg
Operating ambient air temperature	-5℃~40℃
Accessories	1x Controller ,4x Rubber Feet ,2x air Filter

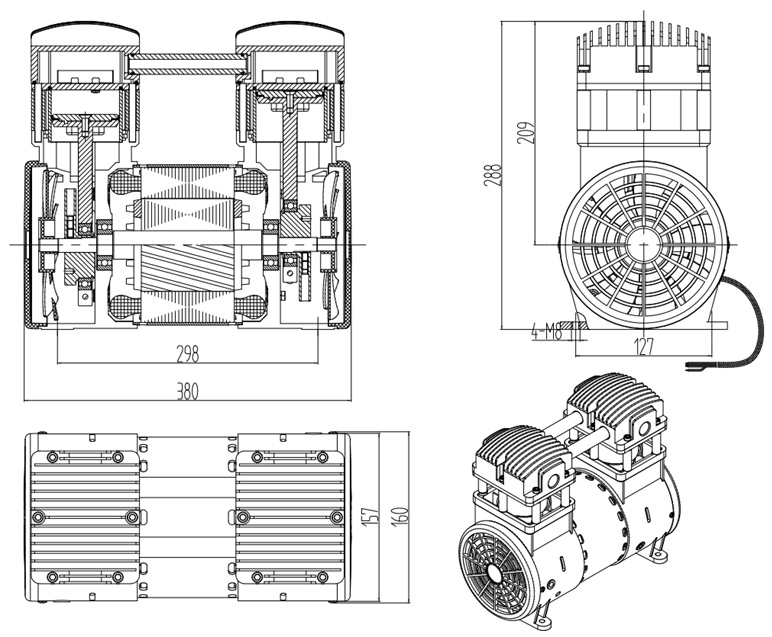

Drawing:

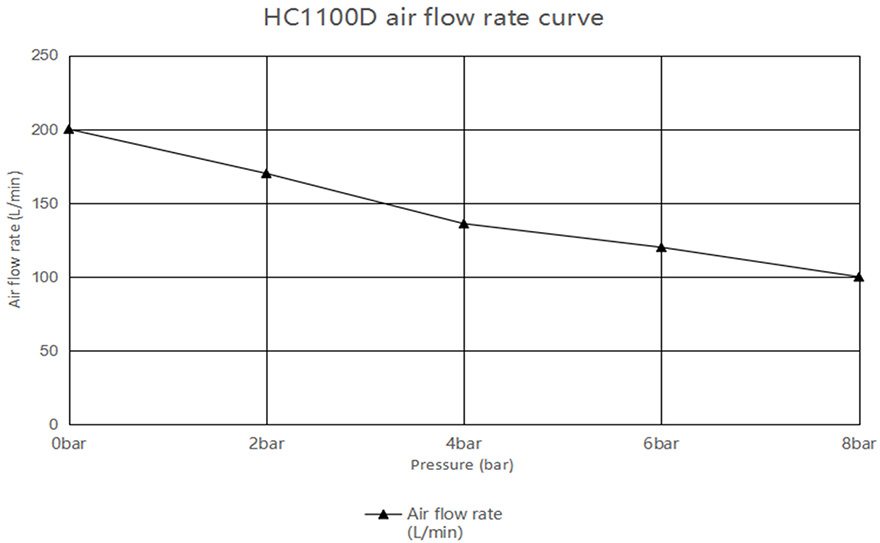

Product flow curve graph:

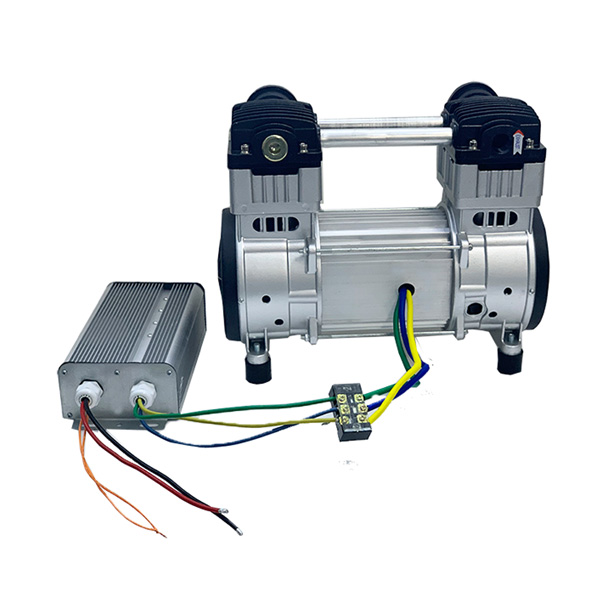

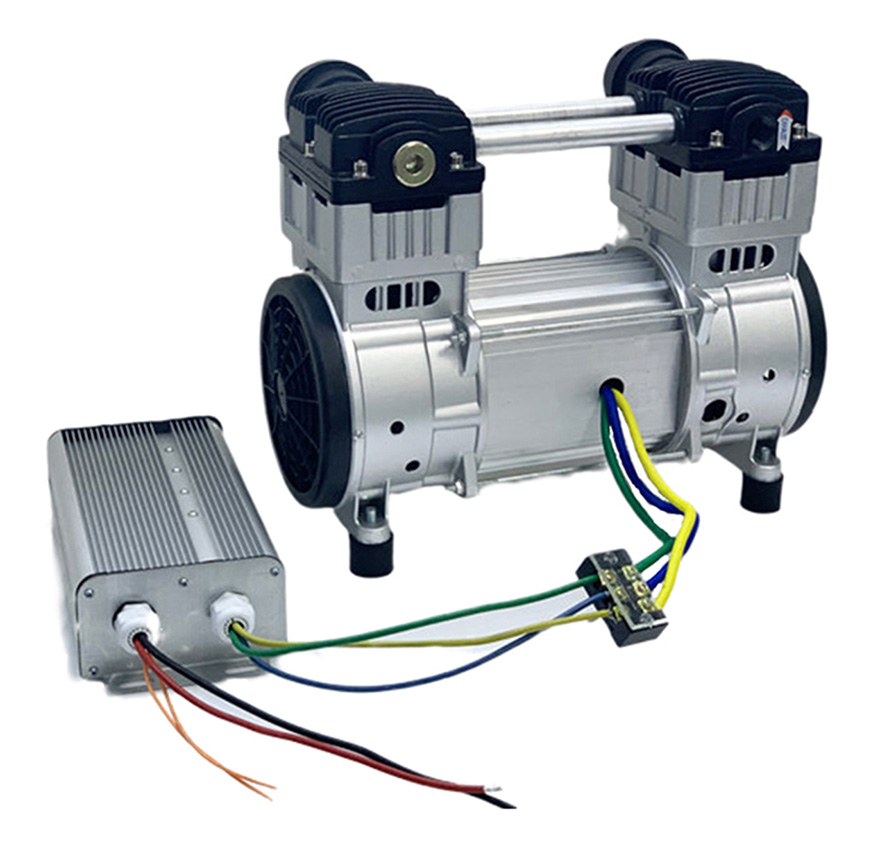

Product show:
