Name: HC750D Oilless Air Pump

Type: HC750D

Voltage: 12V/24V/48V

Air flow rate: 133L/min@0bar

Power: 750 W

Noise: ≤65dB(A)

Speed: 1700rpm

Dimension: 273×135×215 mm

Net weight: 7.3 kg

With controller

Product details

Product parameters:

Model	HC750D
Voltage	DC12V /24V /48V
Power	≤750W
Air fiow rate	133 L/min@0 bar
	116 L/min@2 bar
	90 L/min@4 bar
	73 L/min@6 bar
	60 L/min@7 bar
Dimension	273135215 mm
Installation size	89*223 mm
Rated speed	1700rpm
Noise	≤65dB(A)
Packing	1 pcs / carton case
Net weight	7.3 kg
Operating ambient air temperature	-5℃~40℃
Accessories	1x Controller ,4x Rubber Feet ,1x air Filter

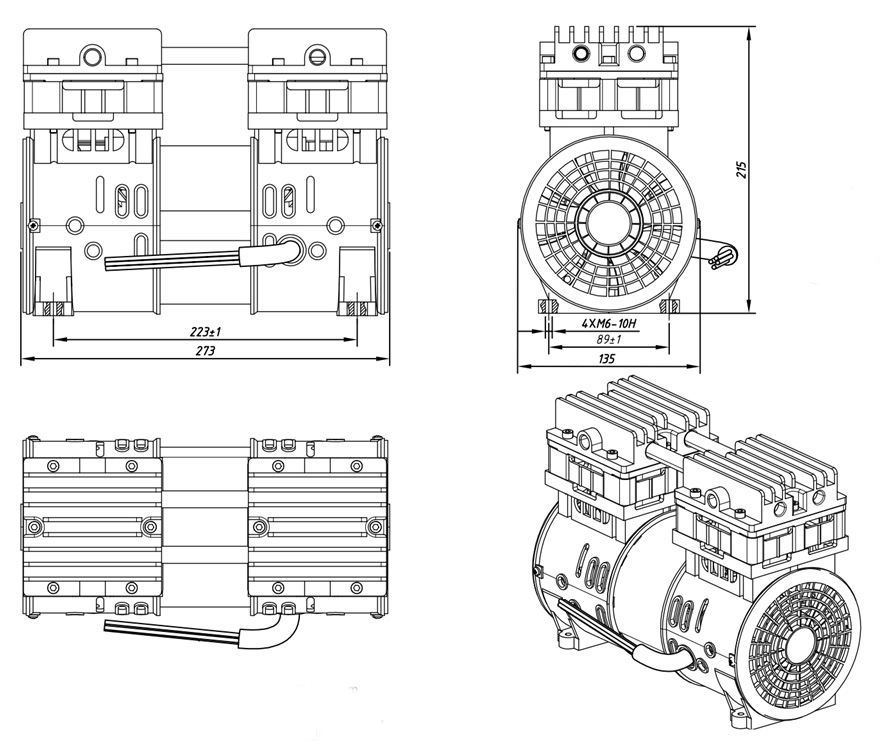

Drawing:

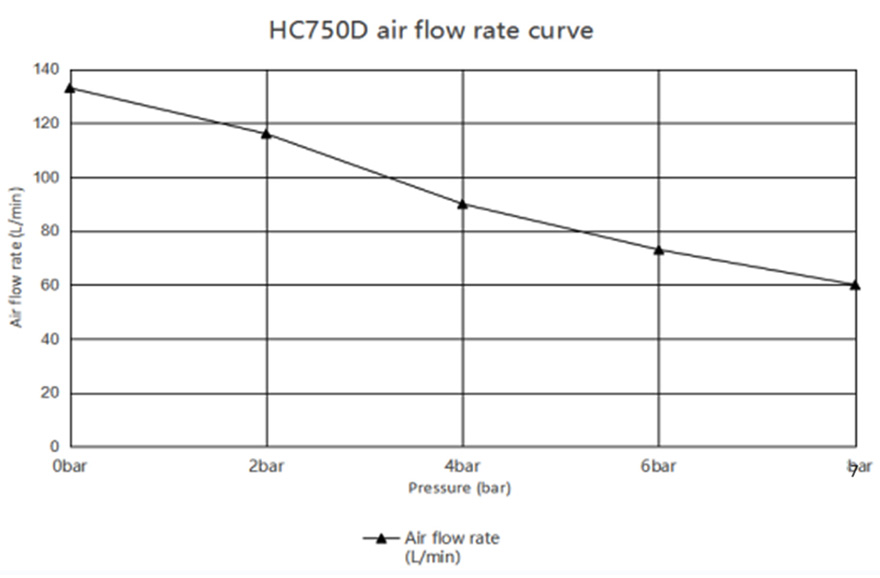

Product flow curve graph:

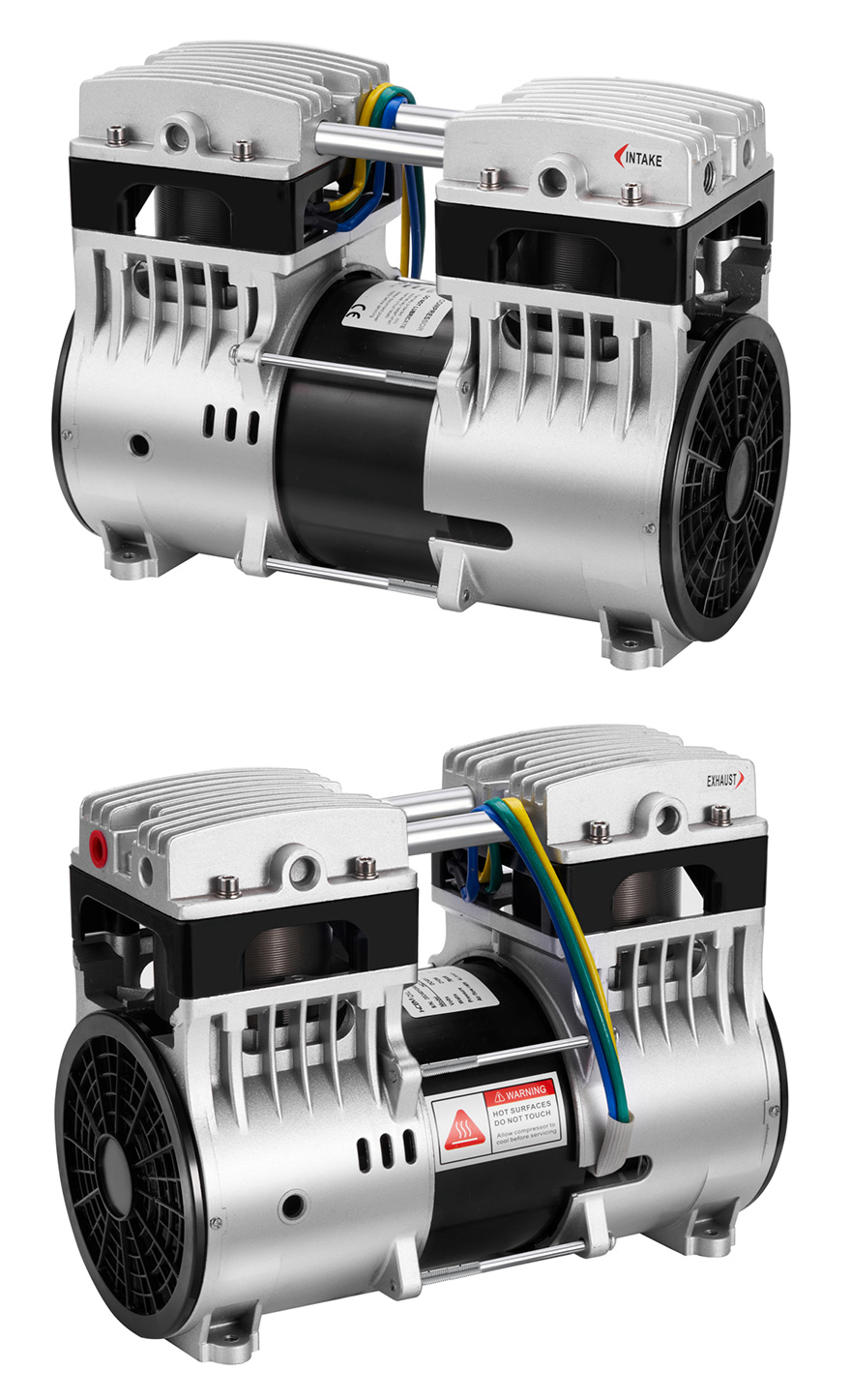

Product show:
