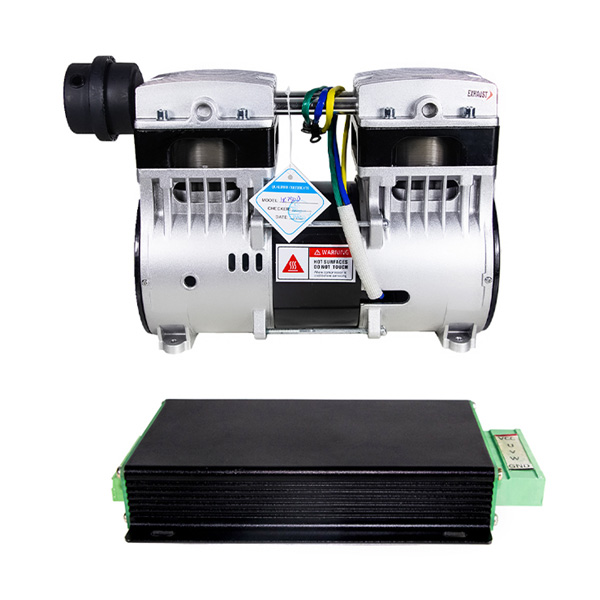

Name: HC550D Oilless Air Pump

Type: HC550D

Voltage: 12V/24V/48V

Air flow rate: 100L/min

Pressure: 7bar

Power: 550 W

Noise: ≤65dB(A)

Speed: 17000rpm

Dimension: 273×135×192 mm

Net weight: 6.8kg

With controller

Product details

Product parameters:

Model	HC550D
Voltage	DC12V /24V /48V
Power	≤550W
Air fiow rate	100 L/min@0 bar
	75 L/min@2 bar
	60 L/min@4 bar
	46 L/min@6 bar
	40 L/min@7 bar
Dimension	273135192 mm
Rated speed	1700rpm
Noise	≤65dB(A)
Packing	1 pcs / carton case
Net weight	6.8 kg
Operating ambient air temperature	-5℃~40℃
Accessories	1x Controller ,4x Rubber Feet ,1x air Filter

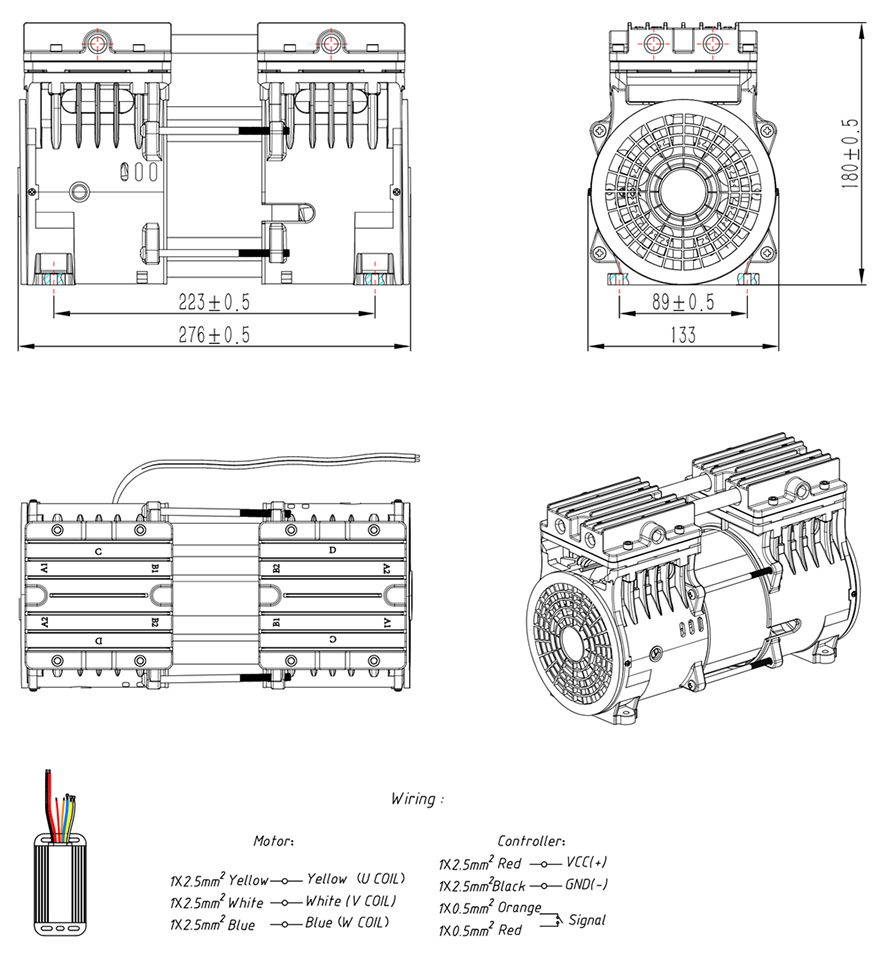

Drawing:

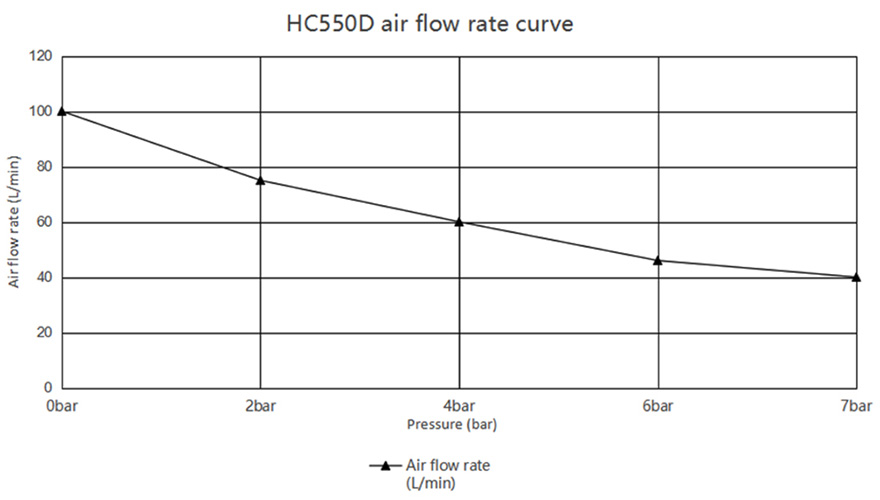

Product flow curve graph:
