Location: Home > Products - DC Air Compressor


Products

Name: HC100Series DC Oilless Air Pump
Type: HC100 DC Series

Voltage: 12V/24V/48V



Pressure: 7 bar



Noise: ≤52dB(A)



Speed: 1700rpm



Dimension:176*96*146mm



Net weight: 3.45 kg

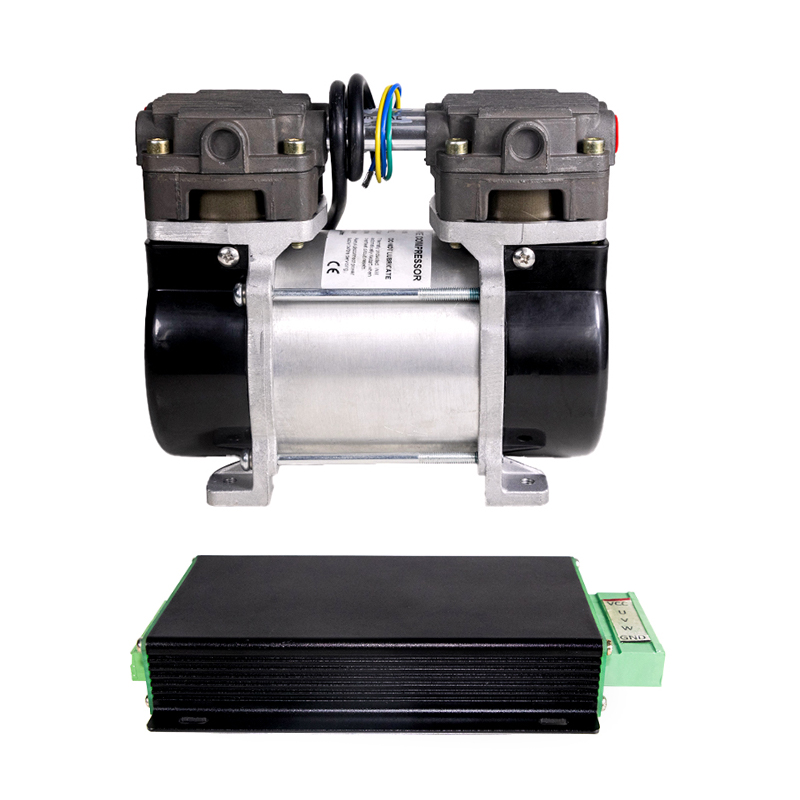

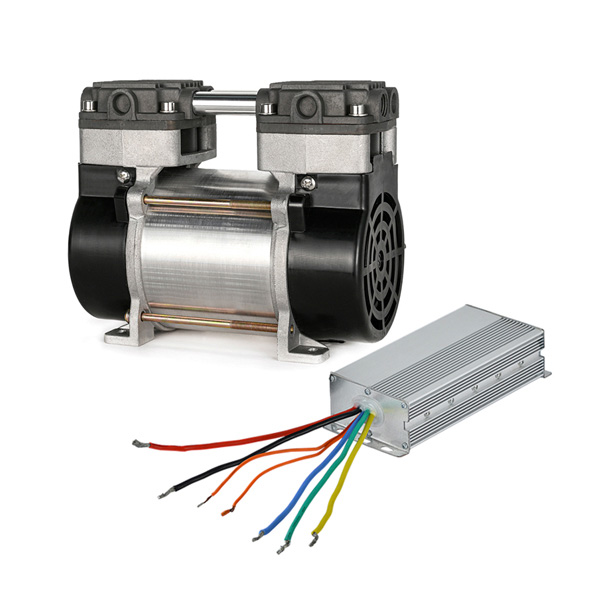

With controller

Product details

Technical Specification:

Model
 Voltage Power Air fiow rate Dimension Installation size Noise Net weight
HC100C-9/7
 DC12V
 210W
 9L/min@7bar
 176*96*146mm
 114*70mm
 ≤52dB(A)
 2.45kg
HC100C-15/7
(HC100C-50/0)
DC12V
 240W
 15L/min@7bar
 176*96*146mm
 114*70mm
 ≤52dB(A) 2.45kg
HC100D-9/7
 DV24V
 210W
 9L/min@7bar
 176*96*146mm
 114*70mm
 ≤52dB(A)
 2.45kg
HC100D-15/7
(HC100D-50/0)
DV24V
 240W
 15L/min@7bar
 176*96*146mm
 114*70mm
 ≤52dB(A)
 2.45kg
HC100E-9L/7
 DC48V
 210W
 9L/min@7bar
 176*96*146mm
 114*70mm
 ≤52dB(A)
 2.45kg
HC100E-15/7
(HC100E-50/0)
DC48V
 240W
 15L/min@7bar
 176*96*146mm
 114*70mm
 ≤52dB(A)
 2.45kg

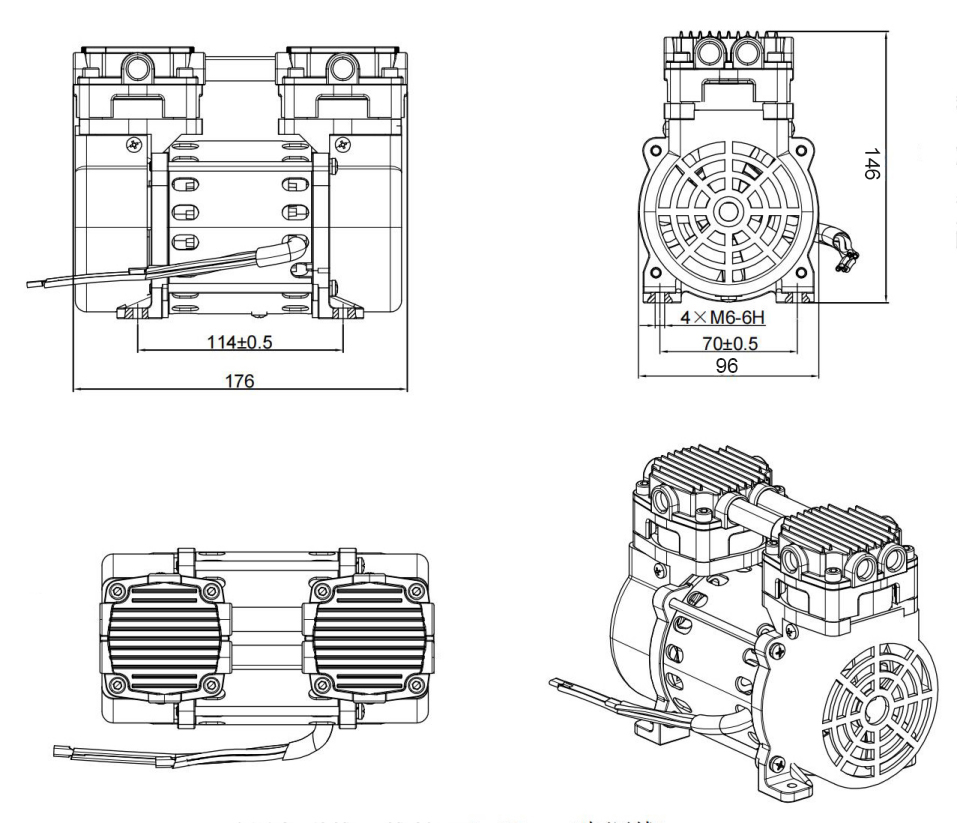

 Drawing:

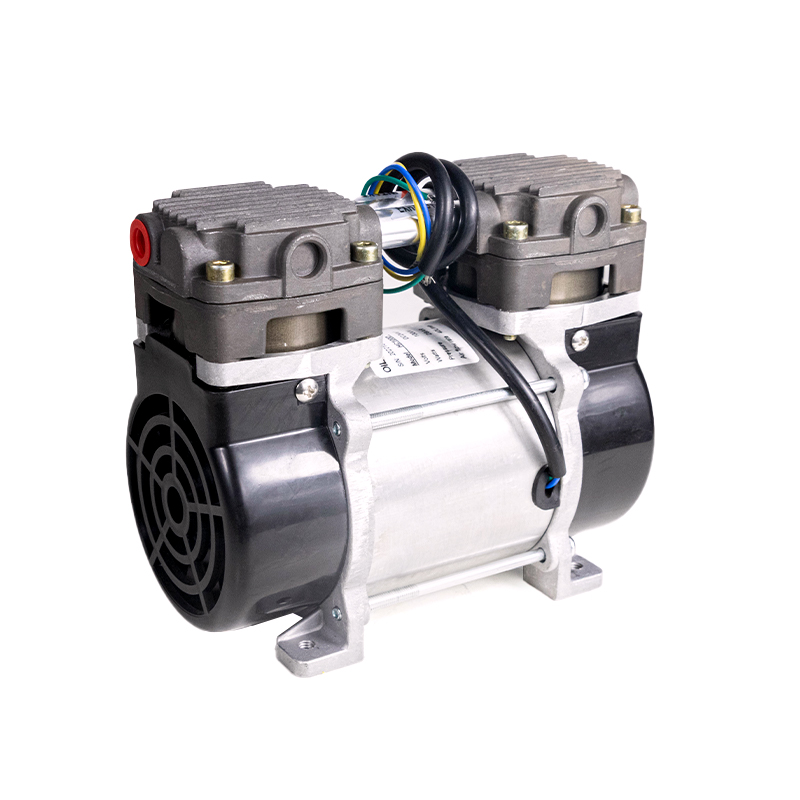

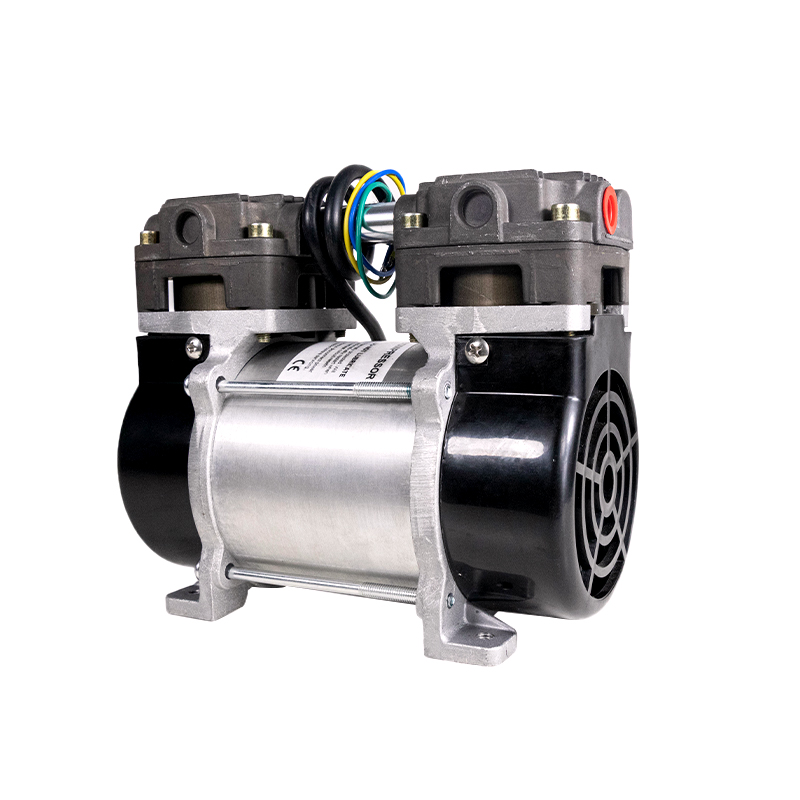

Product show:
