Location: Home > Products - AC Air Compressor Pump


Products

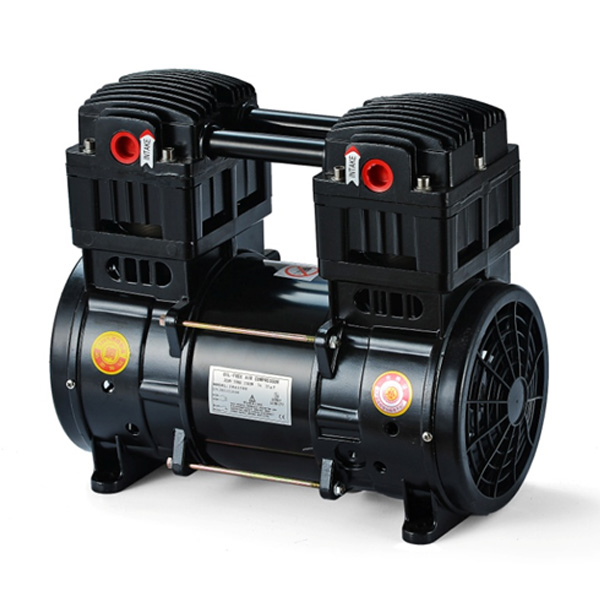

Name: HC1500A Oilless Air Pump
Type: HC1500A

Voltage: 110V 60Hz/220V 50Hz


Power: 1500W


Pressure: 8 bar



Air flow rate: 250L/min



Noise: ≤70dB(A)


Speed: 1400rpm / 1700rpm


Thermal protector: 135℃



Dimension: 330*167*278 mm



Net weight: 17.5 kg

Product details

Product parameters:

Model HC1500A
Voltage 110V/220V
Power 1500W
Air flow rate 250L/min@0 bar
200L/min@2bar
180L/min@4 bar
153L/min@6bar
120L/min@8 bar
Noise ≤70dB(A)
Dimension 330*167*278mm
Installation size 127*244mm
Net weight 17.5 kg
Operating ambient air temperature -5℃~40℃

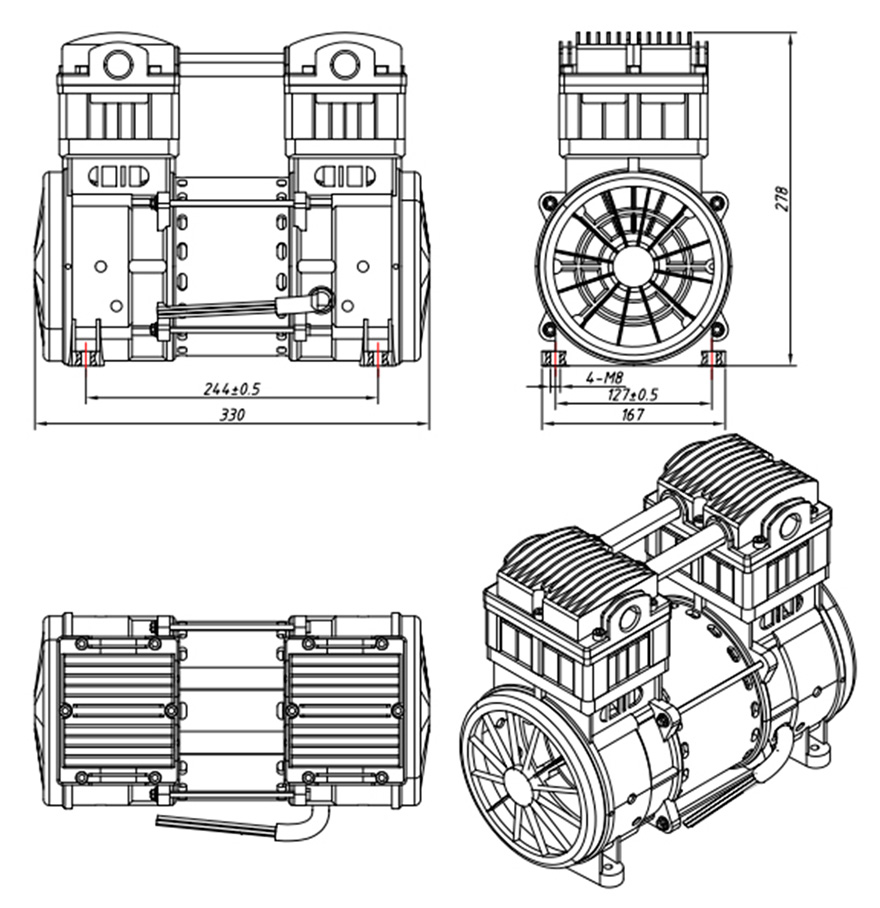

Drawing:

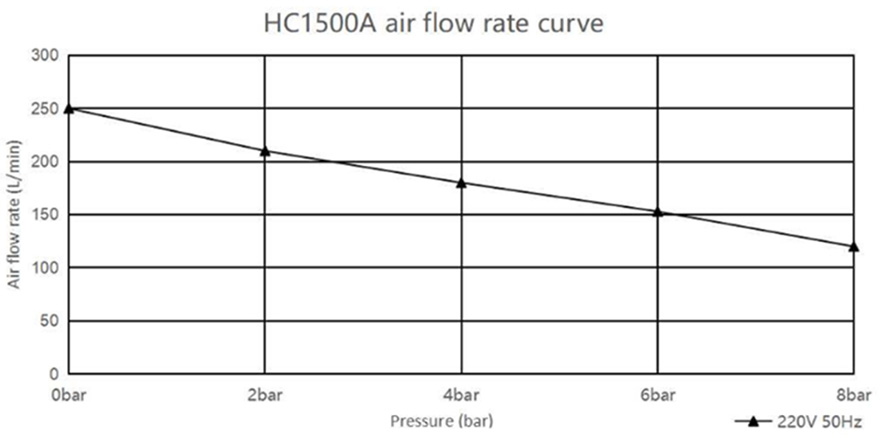

Product flow curve graph:
