Name: HC1100A Oilless Air Pump
Type: HC1100A

Voltage: 110V 60Hz/220V 50Hz


Power: 1100W


Pressure: 8 bar



Air flow rate: 200L/min



Noise: ≤70dB(A)


Speed: 1400rpm / 1700rpm


Thermal protector: 135℃



Dimension: 330*167*278 mm



Net weight: 17 kg

Product details

Product parameters:

Model HC1100A
Voltage 110V/220V
Power 1100W
Air flow rate 200L/min@0 bar
160L/min@2bar
137L/min@4 bar
125L/min@6bar
100L/min@8 bar
Noise ≤70dB(A)
Dimension 330*167*278mm
Installation size 127*244mm
Net weight 17.0 kg
Operating ambient air temperature -5℃~40℃

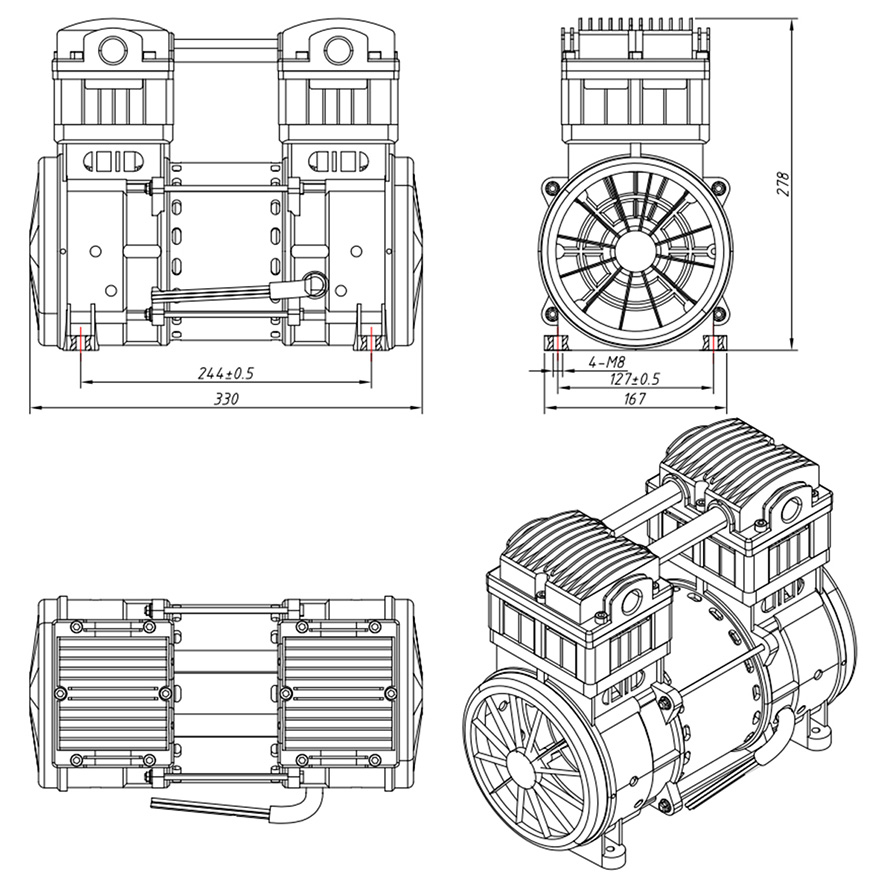

Drawing:

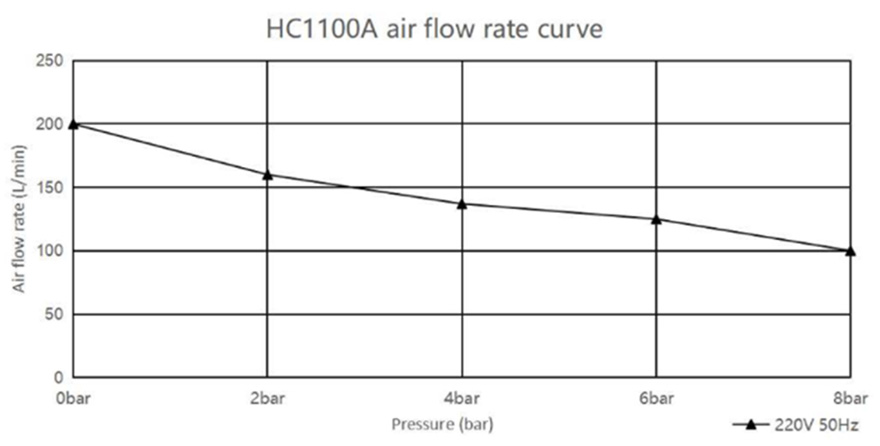

Product flow curve graph:

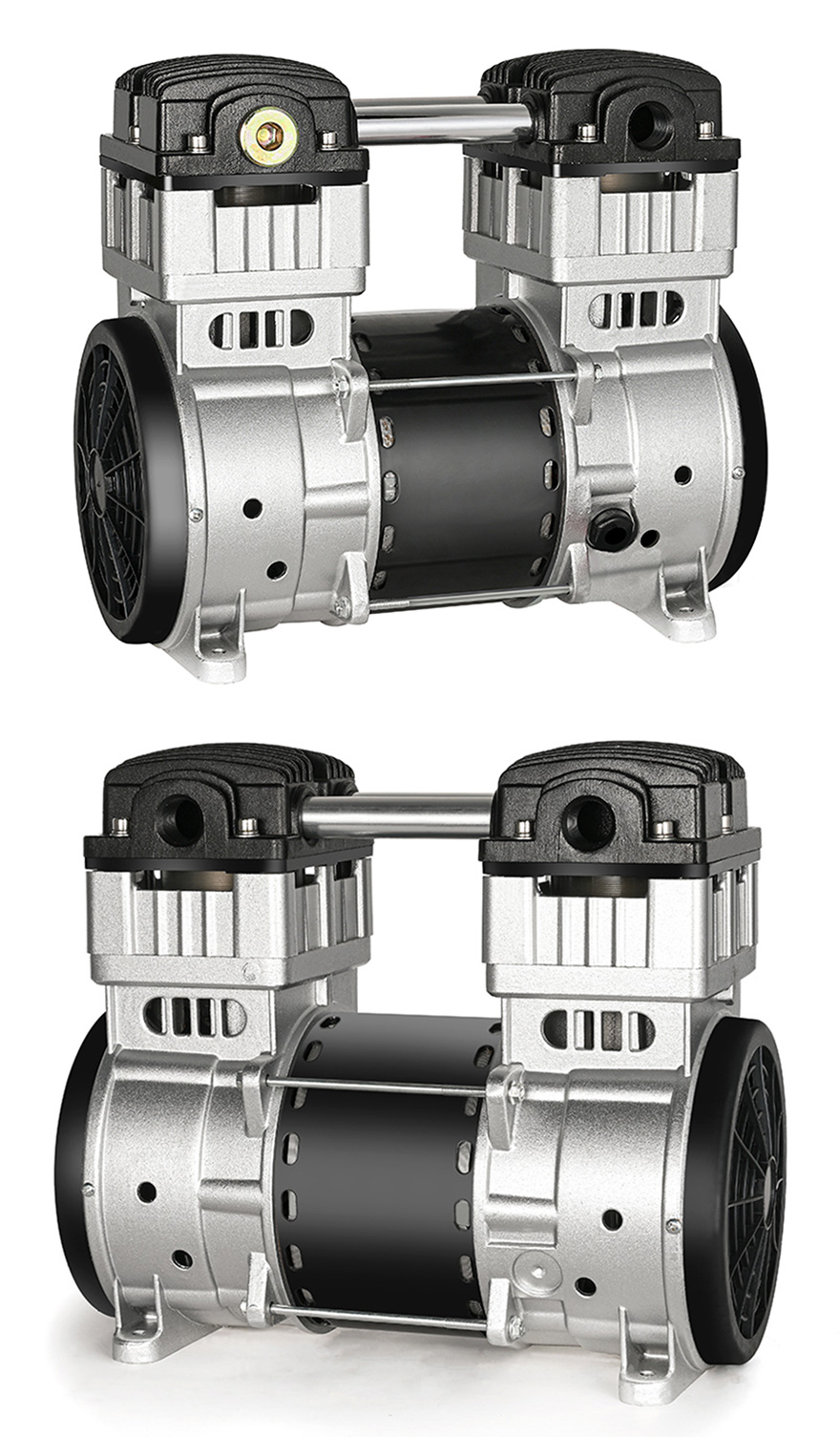

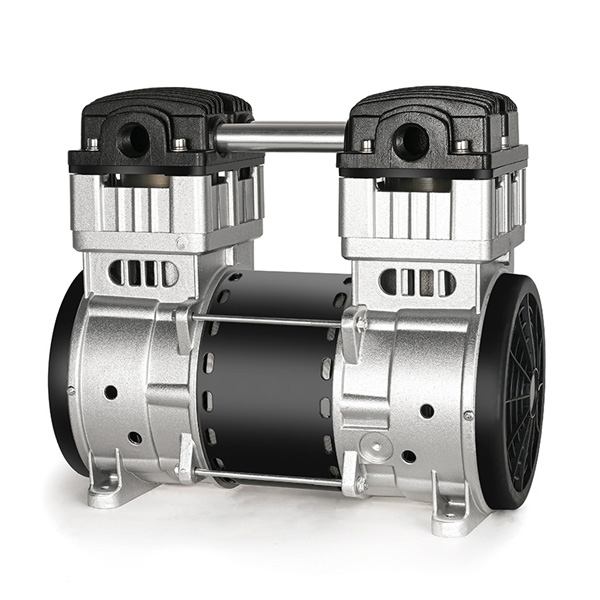

Product show:
