Name: HC750A1-60/7L Oilless Air Pump
Type: HC750A1-60/7L

Voltage: 110V 60Hz/220V 50Hz

Power: 750W

Pressure: 7 bar

Air flow rate: 120L/min

Noise: ≤68dB(A)


Speed: 1400rpm / 1700rpm

Thermal protector: 135℃

Dimension: 273*135*212 mm


Net weight: 10.5 kg

Product details

Product parameters:

Model HC750A1-60/7L
Voltage 110V/220V
Power 750W
Air flow rate 120L/min@0bar
100L/min@ 2bar
80L/min@ 4bar
70L/min@6bar
60L/min@7bar
Noise ≤68dB(A)
Dimension 273*135*212mm
Installation size 223*89mm(M6X4)
Net weight 10.5 kg
Operating ambient air temperature -5℃~40℃

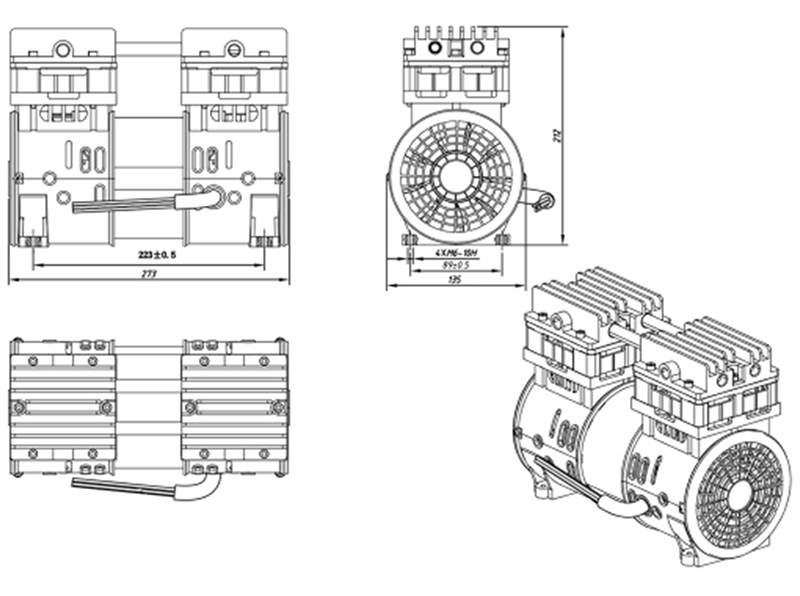

Drawing:

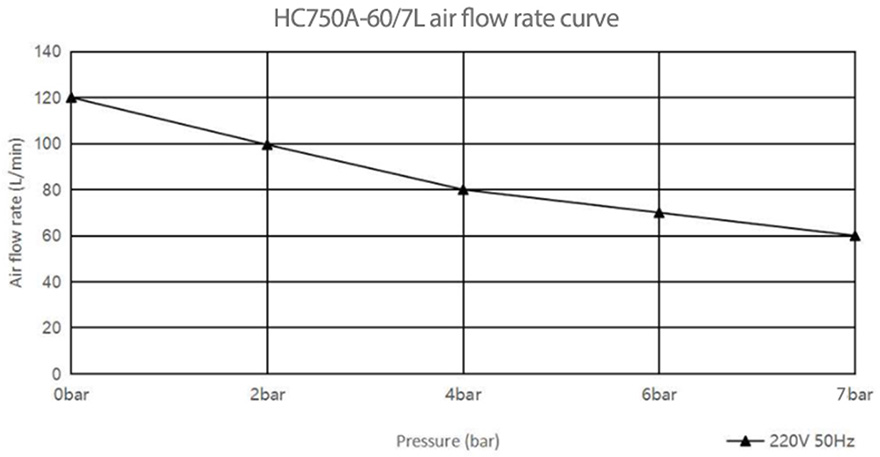

Product flow curve graph:

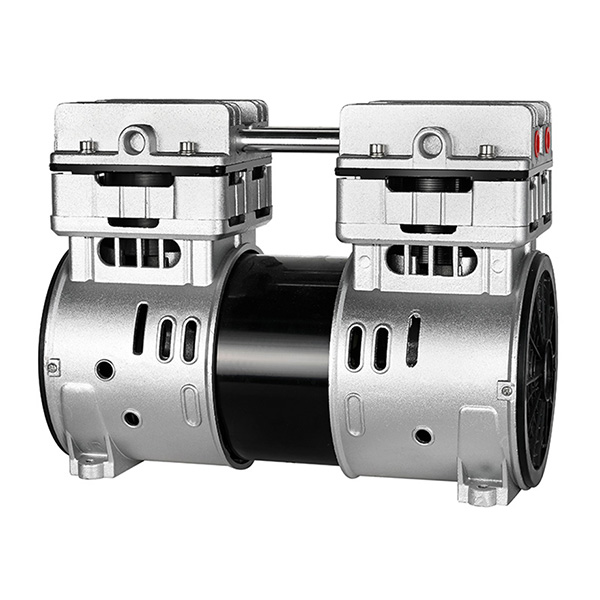

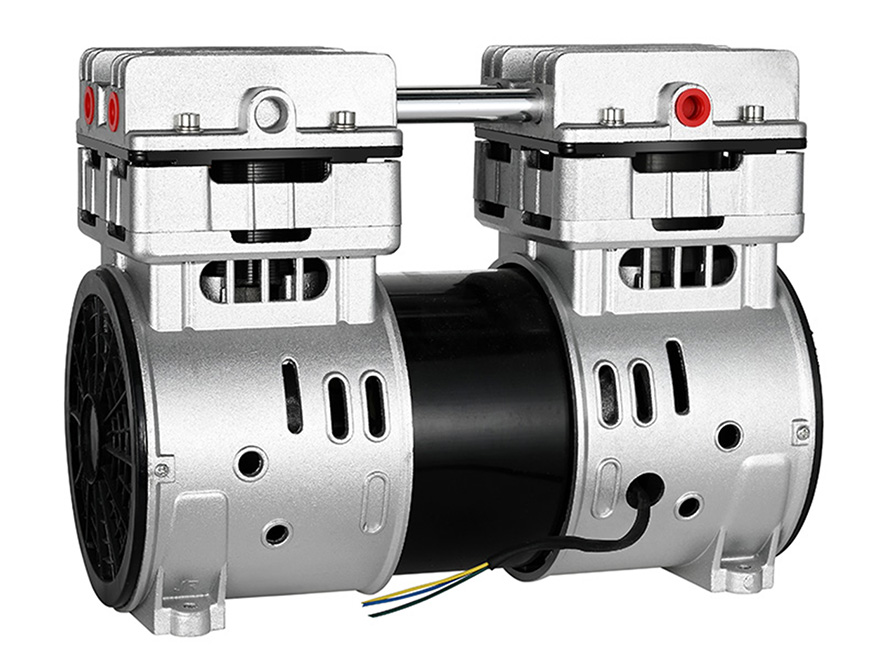

Product show:
