Name: HC550A1-40/7L Oilless Air Pump
Type: HC550A1-40/7L

Voltage: 110V 60Hz/220V 50Hz


Power: 550W


Pressure: 7 bar



Air flow rate: 40L/min@7bar



Noise: ≤68dB(A)


Speed : 1400rpm / 1700rpm


Thermal protector: 135



Dimension: 271*128*192 mm



Net weight: 10 kg

Product details

Product parameters:

Model HC550A1-40/7L
Voltage 110V/220V
Power 550W
Air flow rate 106L/min@0bar
86L/min@ 2bar
66L/min@ 4bar
53L/min@6bar
40L/min@ 7bar
Noise ≤68dB(A)
Dimension 271*128*192mm
Installation size 233*89mm
Net weight 10 kg
Operating ambient air temperature -5℃~40℃

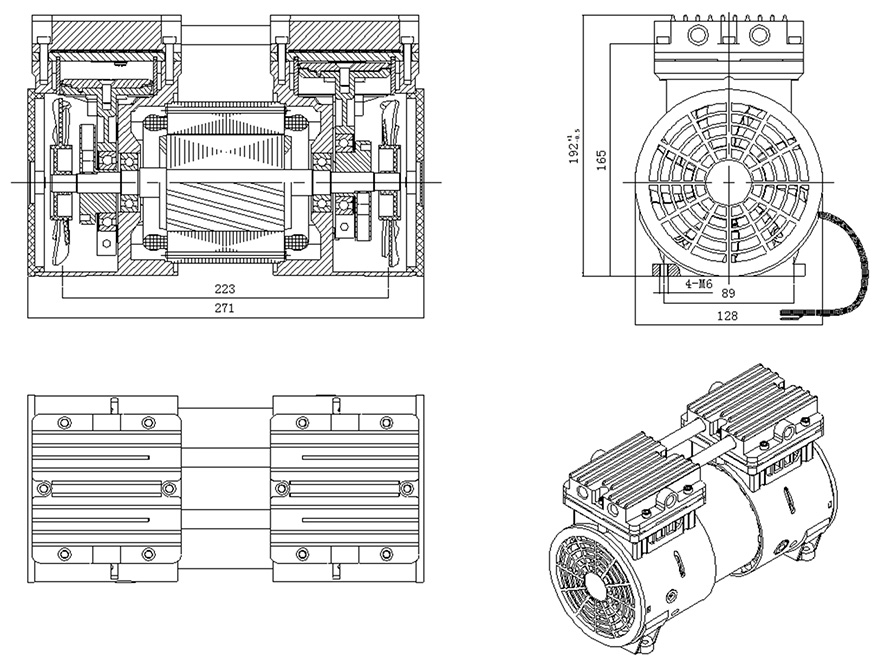

Drawing:

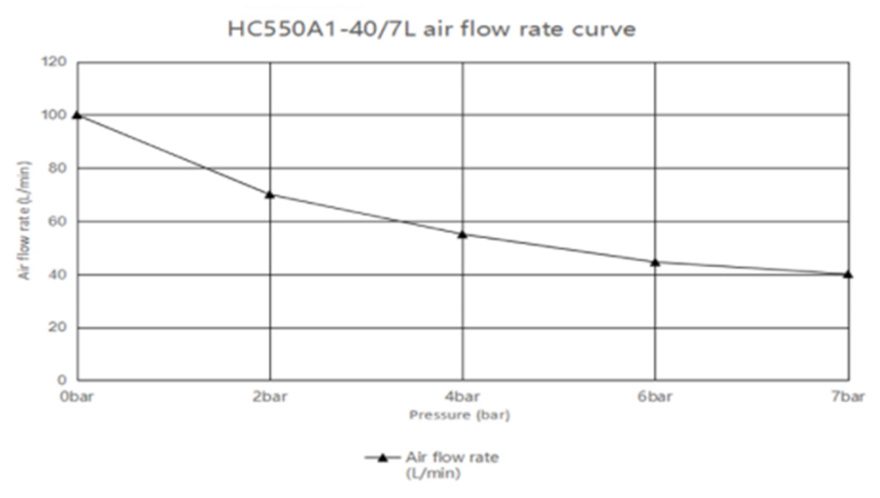

Product flow curve graph:

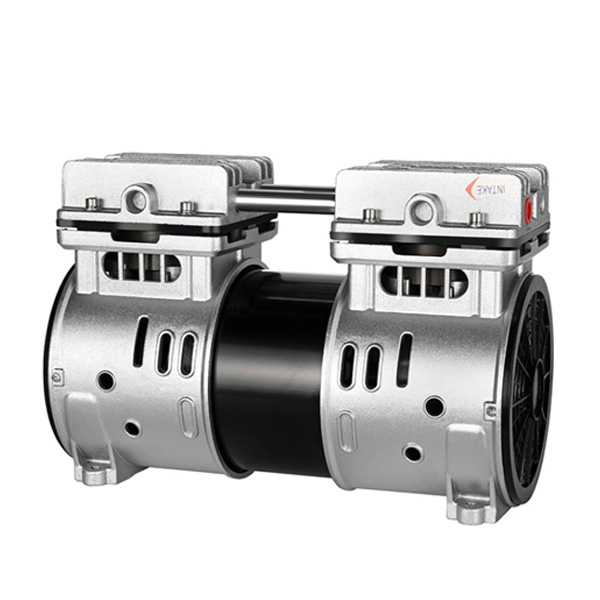

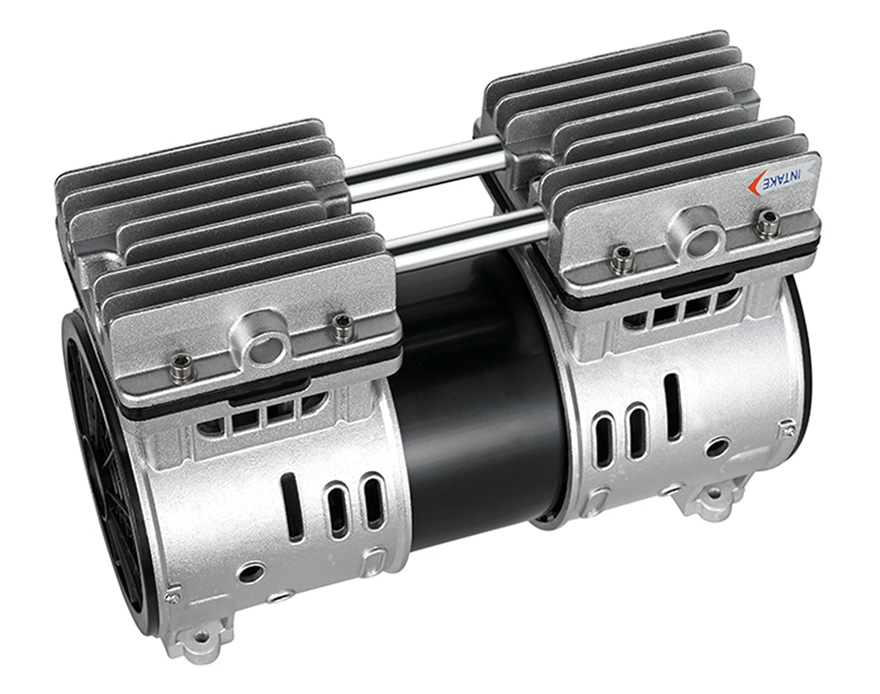

Product show:
