Name: HC80A2

Type: HC80A2 OIL FREE VACUUM PUMP

Voltage : 220V 50Hz/110V 60Hz

Vacuum Pressure:'-86Kpa/-97Kpa

Power: ≤85W;

Noise : ≤42dB(A) ;

Speed: 1440rpm/1700rmp

Design running Temperature : 0℃-100℃ ;

Dimension : 150*95*135 mm

Net weight : 2.25 KG

Product details

More Specification
Voltage	220V 50Hz	220V 50Hz	110V 60Hz	110V 60Hz
Power	≤85W	≤85W	≤85W	≤85W
Vacuum flow rate	30L/min@-86Kpa	15L/min @ -97Kpa	26.6L/min@-86Kpa	15L/min@-97Kpa
Speed	1400rpm	1400rpm	1700rpm	1700rpm
Noise	≤42dB(A)
Temperature	-5℃-40℃
Packing	5 pcs / carton case
Dimension	15095135 mm
Installation size	72*104 mm
Net Weight	2.25 kg
Attached accessories	4x rubber feet, 1x Air filter , 1x Capacitor

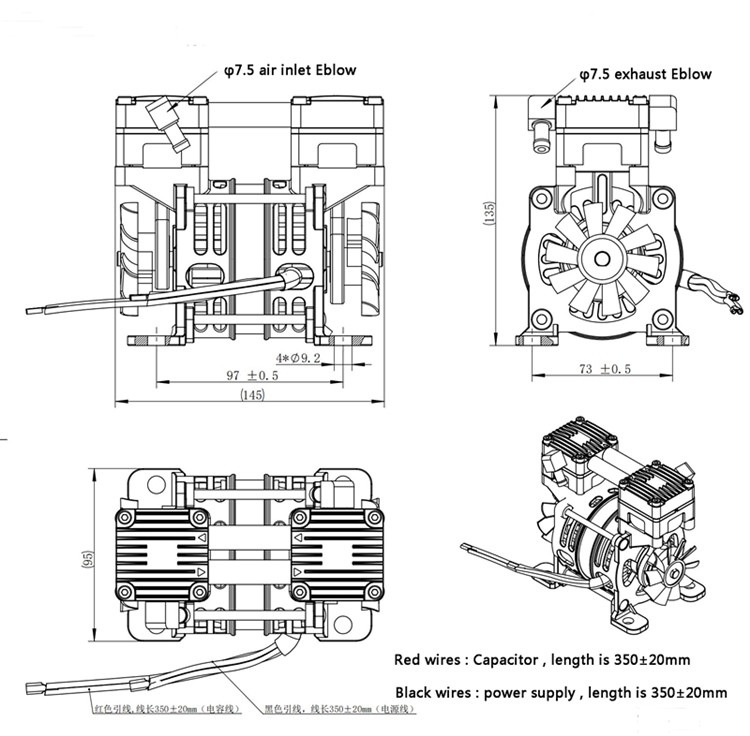

Drawing :

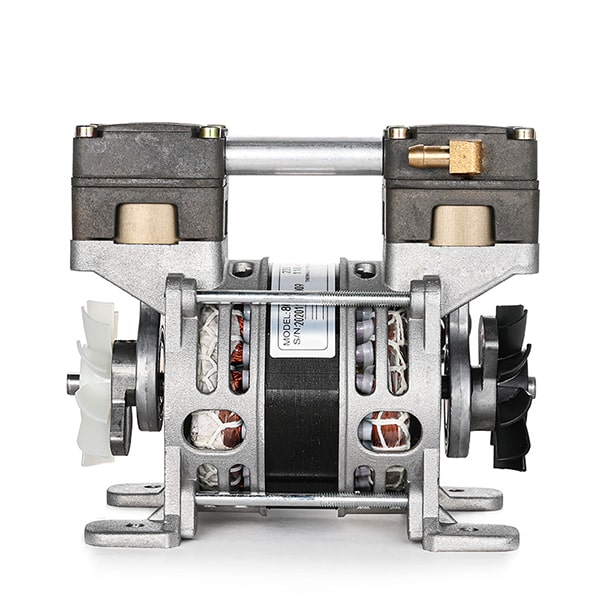

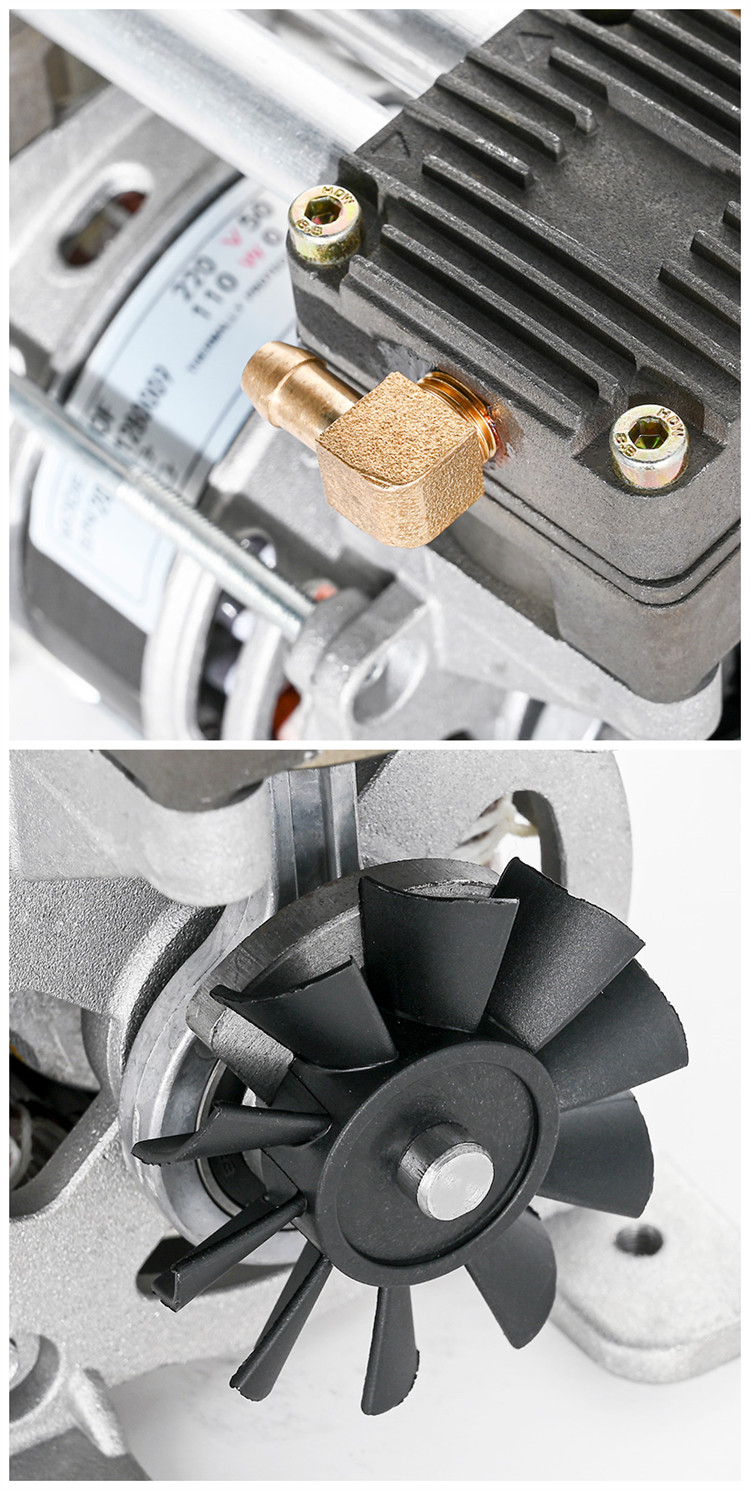

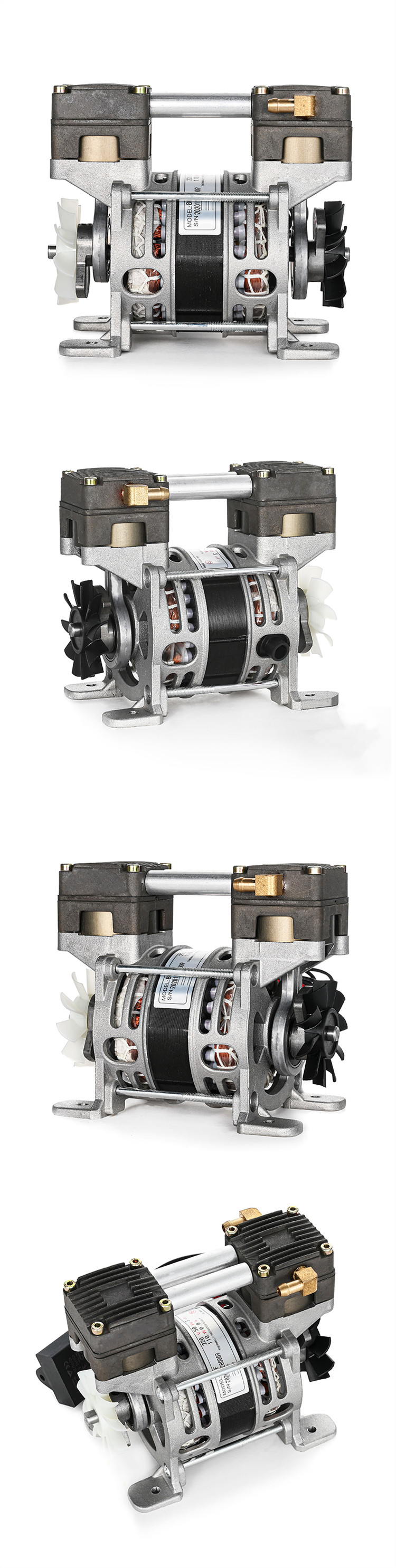

Product show :

Back
